The Elbertse/Adema organ
from

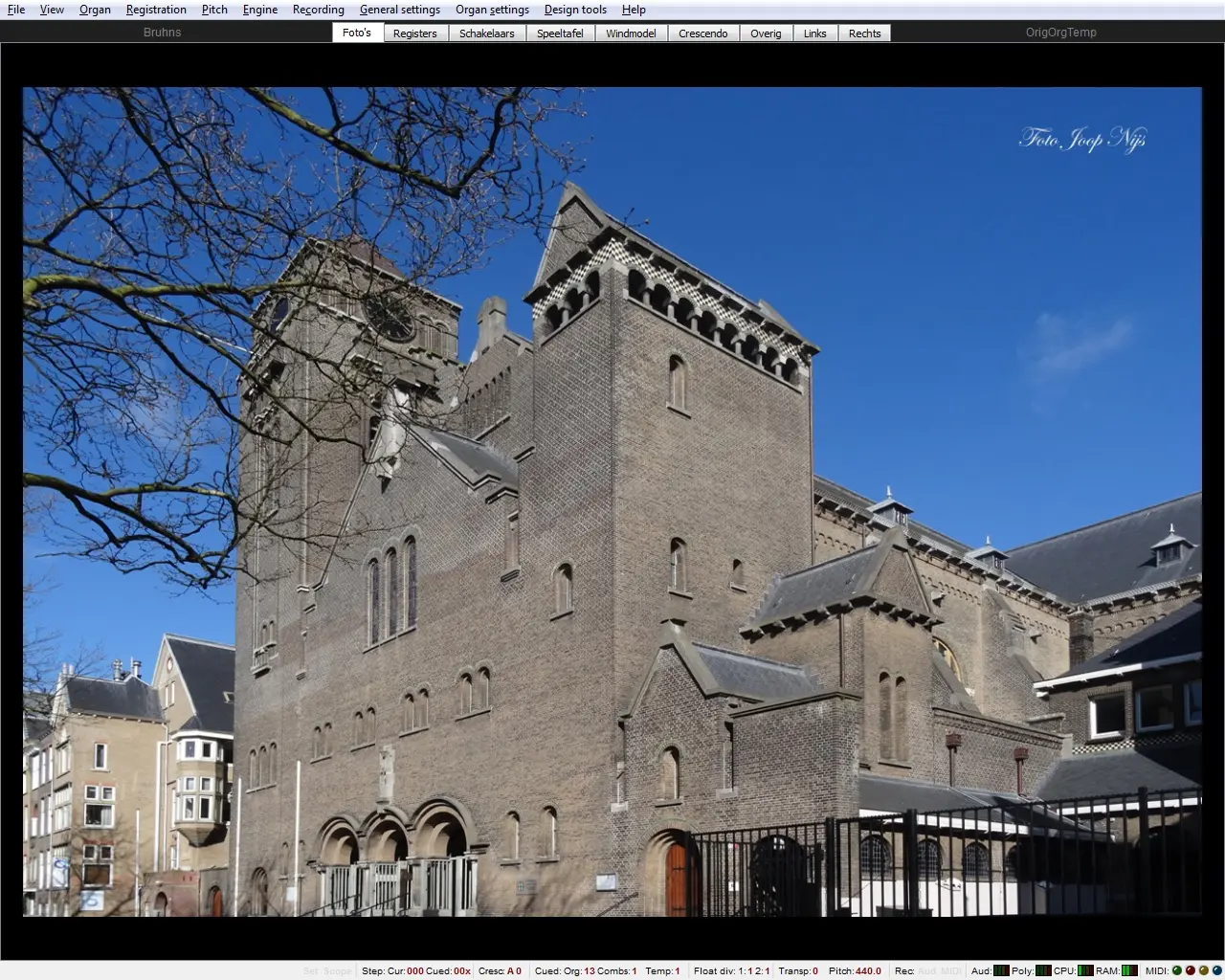

the Laurentius & Elisabeth Kathedraal in Rotterdam

€ 459,-

foto van Medemblik

play-buttonPLAY DEMO
C.M. Widor - Allegro Vivace uit Symphony V

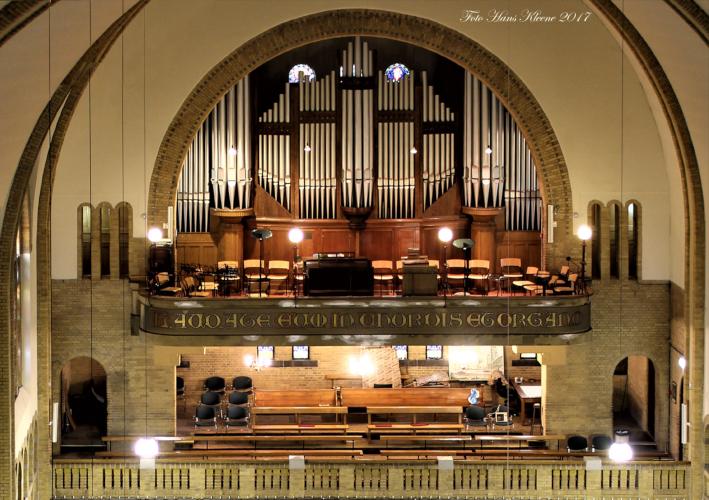

December 2017 we have recorded for Hauptwerk the main organ of the Laurentius & Elisabeth Cathedral situated Mathenesserlaan 305 in Rotterdam.
The organbuilder Elbertse of Aalten built a pneumatic organ with 30 stops on two manuals an pedal in 1923. The pipe facade was designed by the church's archtect P.G. Buskens.
An extensive transformation took place in 1997/98, executed by the organbuilders Adema Schreurs from Amsterdam with help from many parish volunteers.
The disposition of the Swell (now third manual) was reconstructed and a french Fagot 16' and Trompet harmonique 8' were added. The existing Hobo 8' was replaced by a french Hobo.
The pedal Open Fluit 4' was replaced by a Trombone made from pine-wood. The Bazuin 16' was extended with a subcontra-octave to provide the transmission of a Bazuin 32'. The largest 12 pipes of this stop are also made of pine-wood.
More extensive was the addition of the Positive (now second manual). Tree stops are completely new: the Klarinet, Engelse Hoorn and Viola 4'. All other pipework comes from the organbuilders stock. The preumatic system was electrified and the console completely rebuild. Originally placed on the left-hand side of the balcony, the console was moved to its present location, almost in front of the organ, in May 2003.




About the recordings


Three channels technology

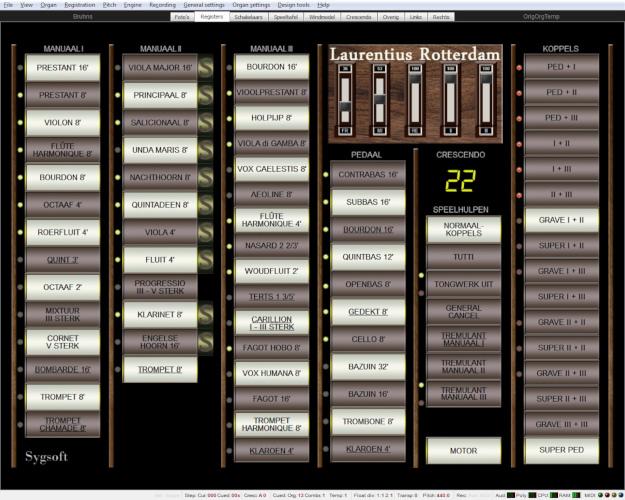

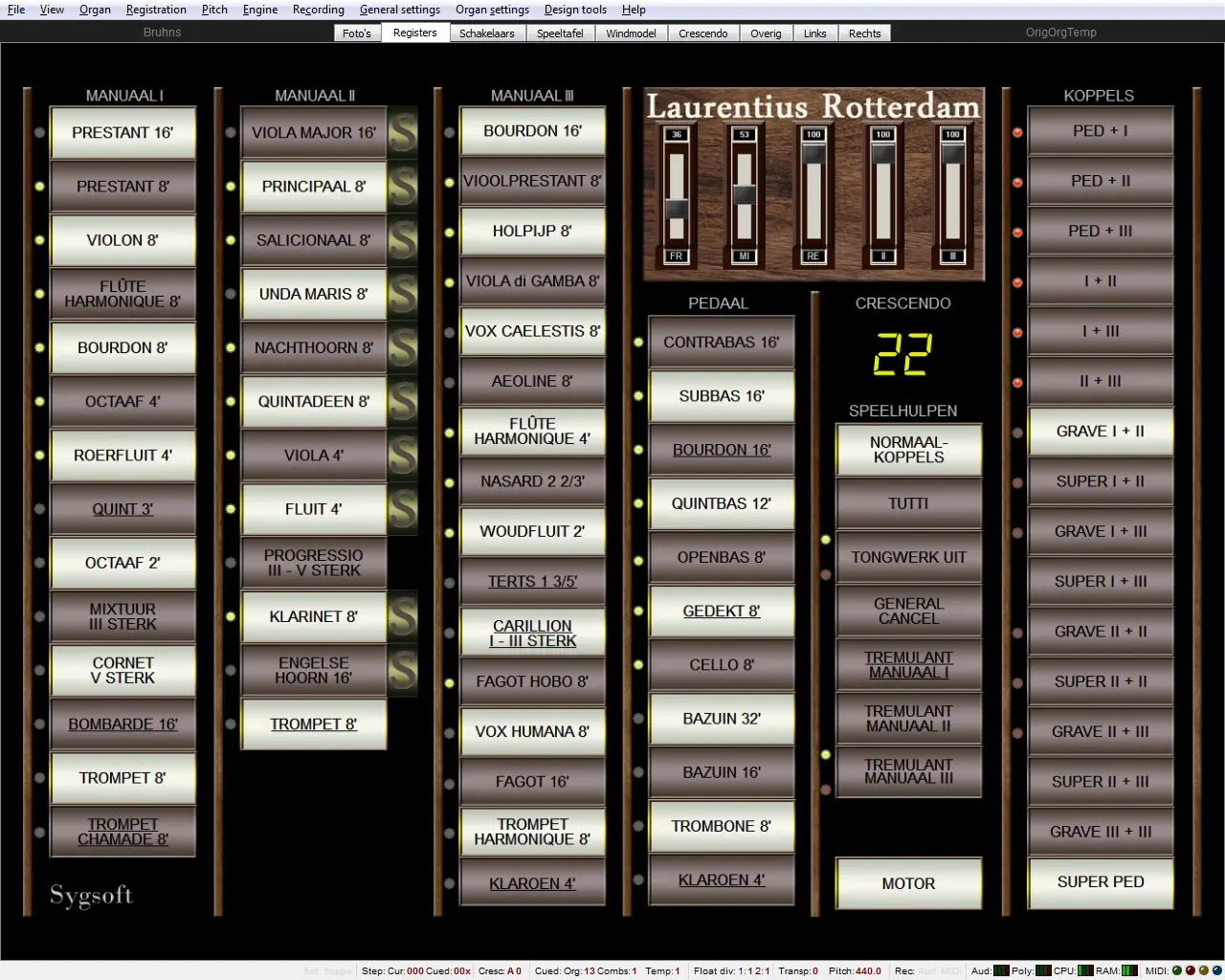

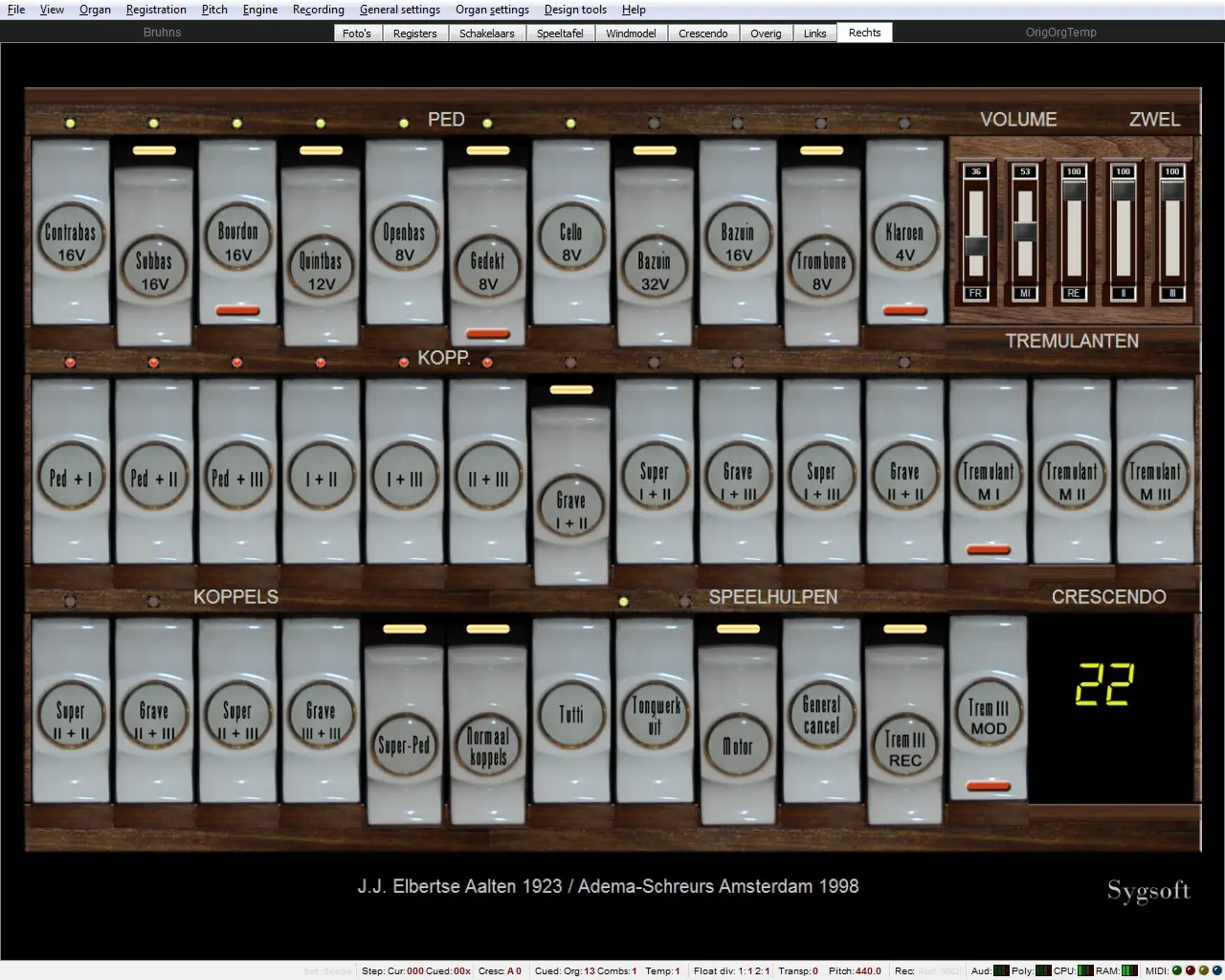

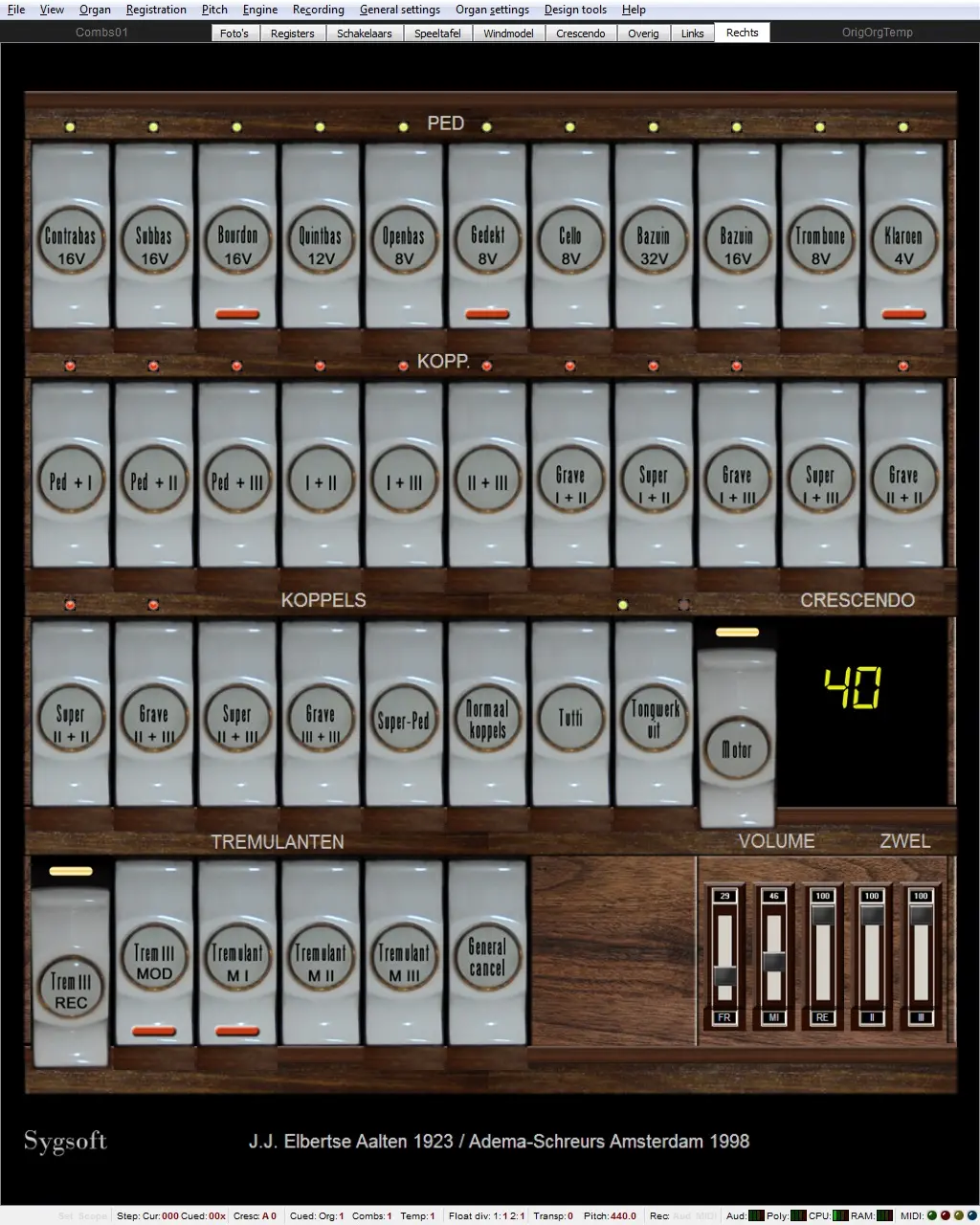

Sliders on the tab "Virtual console"

This sample set was recorded from three positions in stereo (24 bit 96kHz).
The set comes with a Sygsoft devised 3-channel technique whereby the user may set the listening position themselves.
There are 3 positions, namely :
1: Front, recorded very close to the organ. This provides a very direct recording that is useful for study purposes.
2: Centre (Middle), this recording was made at about 3 times the distance used in the front recording.
3: Rear, recorded far from the organ is used as surround.
Through three sliders (0-100%), a mix can be made of the three positions that is to your liking.
The 4th slider (with the caption "II") is the swellpedal of manual II. The 5th slider (with the caption "III") is de swellpedal of the Swell (man. III).


Other details

The recordings for this sample set were made in december 2017.
Recording quality 96 kHz, 24 bit. The set is reduced to 48 kHz 24 bit.
Number of microphones: 6.
Number of samples processed in this set: 37.733
Number of samples processed in this set: ca. 2.300.000



Division of the Work

Johan van der Waal van Dijk:
Processing of the samples and technical advice.

Christian Boogaard:

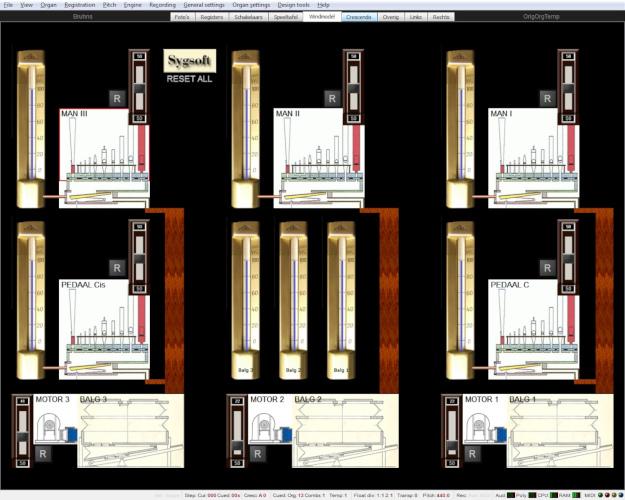

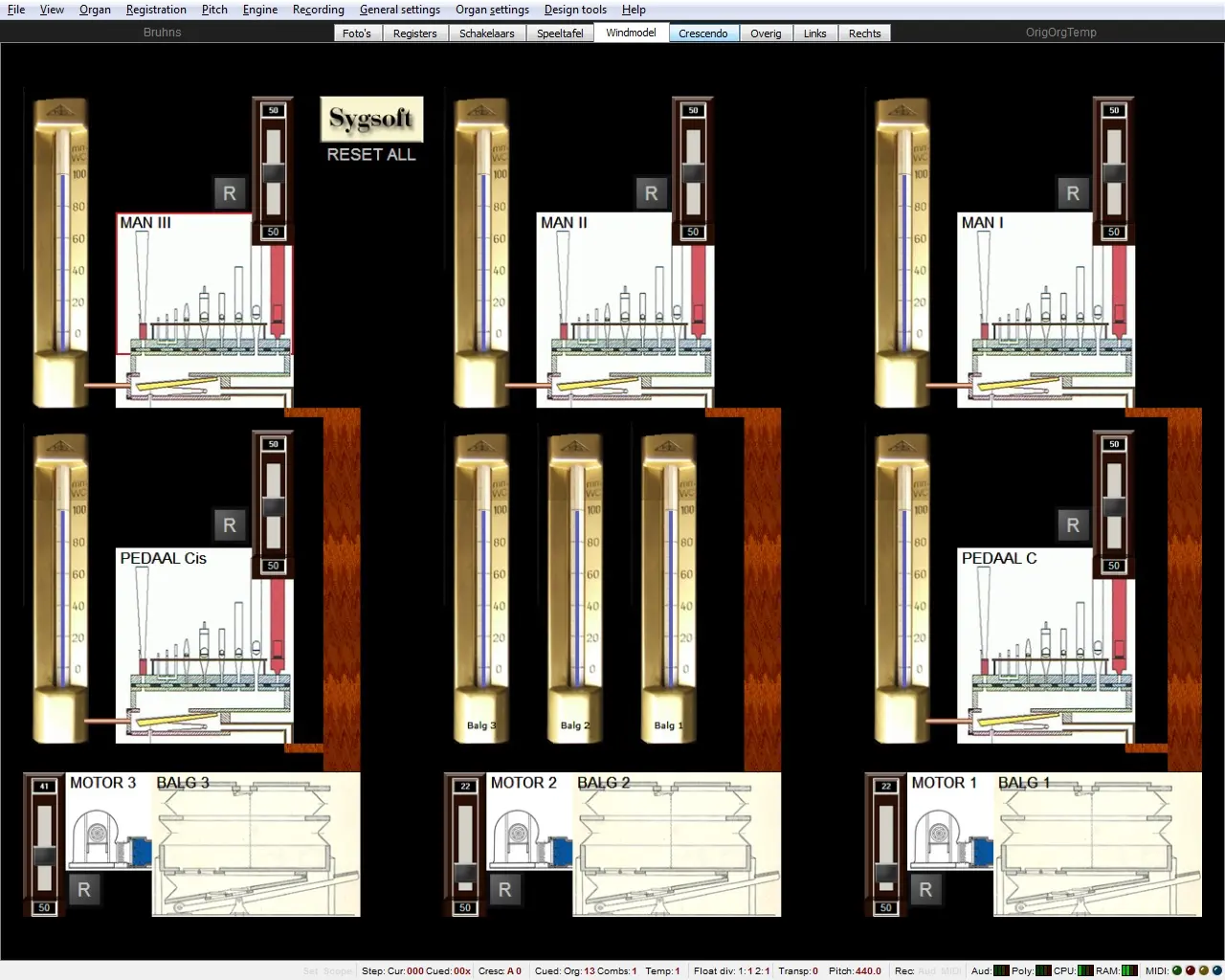

Noise reduction, adjusting the wind model, intonation, demos, and artistic advice.

Rietje Raatgeep:
Administration and PR.

Fred de Jong:
Layout, additional control samples, loops ,ODF and overall management.

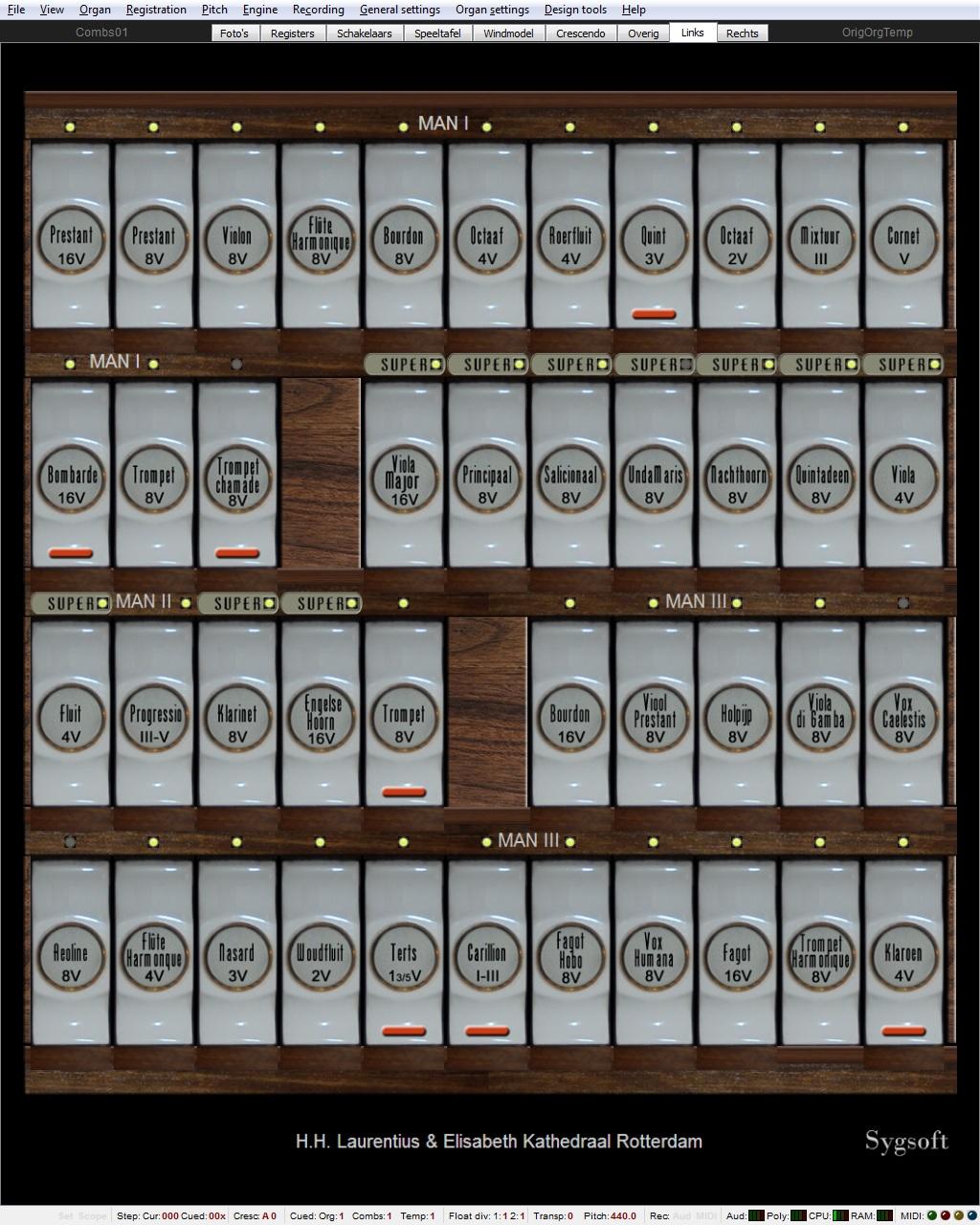

Specification
of
the Elbertse/Adema organ from the Laurentius & Elisabeth Kathedraal in Rotterdam

(green has been added for Hauptwerk)

Man. I:
Hoofdwerk C-g'''
Man. II:
C-g''' (pijpwerk C-g'''')
Man. III:
Zwelwerk C-g'''
Pedal: C-f' Coupler: Playing Aids:
01-Prestant
02-Prestant
03-Violon
04-Flûte Harmonique
05-Bourdon
06-Octaaf
07-Roerfluit
08-Quint
09-Octaaf
10-Mixtuur
11-Cornet
12-Bombarde
13-Trompet
14-Trompet Chamade
16'
8'
8'
8'
8'
4'
4'
3'
2'
III ranks
V ranks
16
8'
8'
15-Viola Major
16-Principaal
17-Salicionaal
18-Unda Maris
19-Nachthoorn
20-Quintadeen
21-Viola
22-Fluit
23-Progressio
24-Klarinet
25-Engelse Hoorn
26-Trompet
16'
8'
8'
8'
8'
8'
4'
4'
III - V ranks
8
16
8'
27-Bourdon
28-Vioolprestant
29-Holpijp
30-Viola di Gamba
31-Vox Caelestis
32-Aeoline
33-Flûte Harmonique
34-Nasard
35-Woudfluit
36-Terts
37-Carillion
38-Fagot Hobo
39-Vox Humana
40-Fagot
41-Trompet Harmonique
42-Klaroen
16'
8'
8'
8'
8'
8'
4'
2 2/3'
2'
1 3/5'
I - III ranks
8'
8'
16'
8'
4'
43-Contrabas
44-Subbas
45-Bourdon
46-Quintbas
47-Openbas
48-Cello
49-Bazuin
50-Bazuin
51-Trombone
52-Klaroen
16'
16'
16'
10 2/3'
8'
8'
32'
16'
8'
4'
Coupler
Coupler
Coupler
Coupler
Coupler
Coupler
Coupler
Coupler
Coupler
Coupler
Coupler
Coupler
Coupler
Coupler
Coupler
Coupler
Ped + I 8'
Ped + II 8'
Ped + III 8'
I + II 8'
I + III 8'
II + III 8'
I + II 16'
I + II 4'
I + III 16'
I + III 4'
II + II 16'
II + II 4'
II + III 16'
II + III 4'
III + III 16'
Ped + I 4'
Tremulant - Manual I
Tremulant - Manual II
Tremulant - Swell
Normalcoupler
Tutti
Tongwerk uit (Reeds off)
General cancel

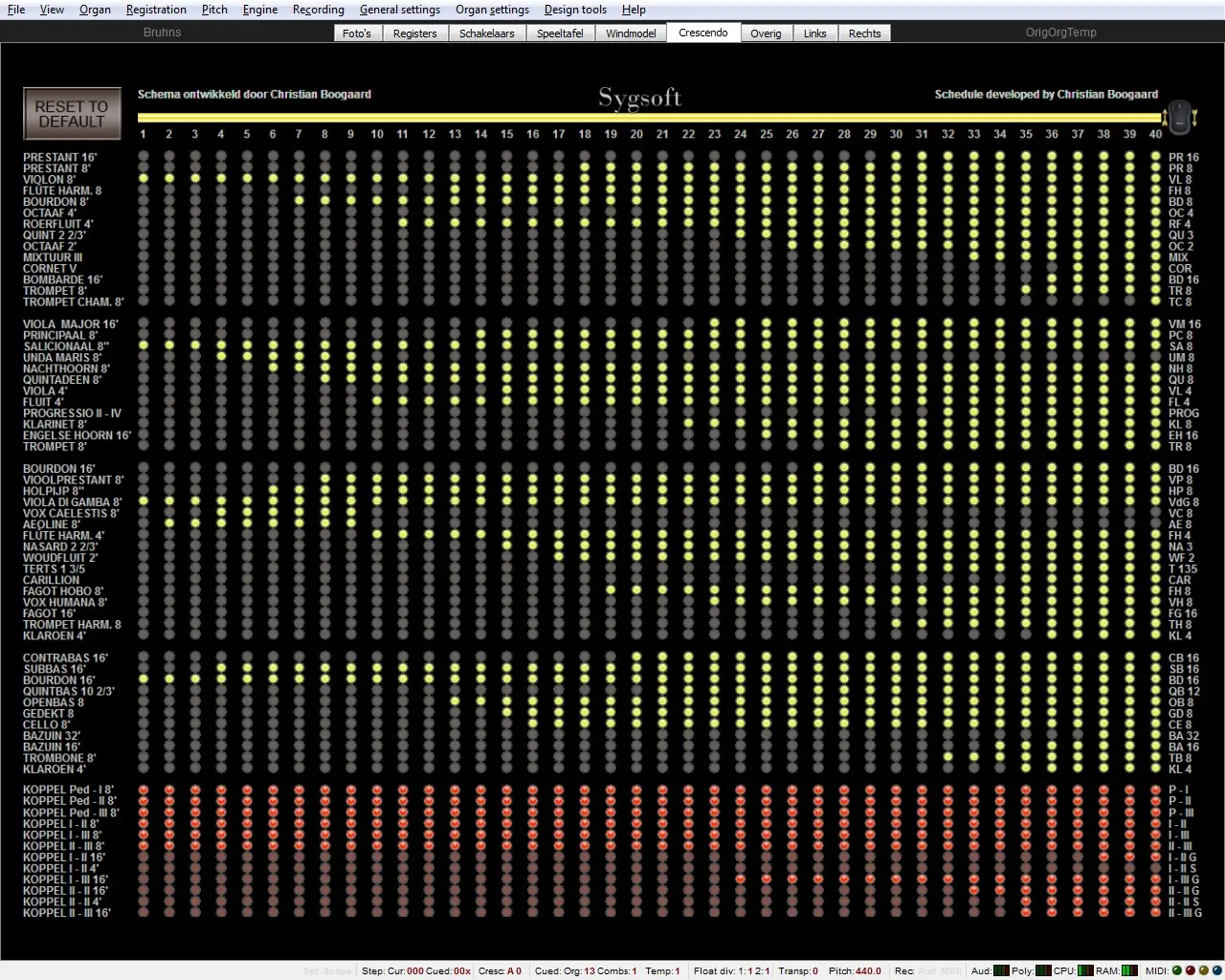

General Crescendo
Trekkergeluid (Tracker noises)
Toetsgeluid (Key noises)
Motor

Demo's
van
the Elbertse/Adema organ from the Laurentius & Elisabeth Kathedraal in Rotterdam


Composer:
Organist:


play-button     C.M. Widor - Toccata uit Symphony V
Temperament: Original
Registration:
Version 1.0
Windmodel: 100
Front: 25
Middle: 45
Rear: 100
Organist: Christian Boogaard
play-button     Jezus leven van mijn leven
Temperament: Original
Registration:
Early béta version 1.8
Windmodel: 100
Front: 25
Middle: 45
Rear: 100
Organist: Christian Boogaard
play-button     J. Bonefaas - Kom verwondert u
Temperament: Original
Registration:
Béta version
Windmodel: 100
Front: 25
Middle: 45
Rear: 100
Organist: Christian Müller
play-button     F. van Tilburg - Ik kniel aan uw kribbe neer
Temperament: Original
Registration:
Béta version
Windmodel: 100
Front: 25
Middle: 45
Rear: 100
Organist: Christian Boogaard
play-button     C. Franck - Grand-Coeur
Temperament: Original
Registration:
Béta version
Windmodel: 100
Front: 25
Middle: 45
Rear: 100
Organist: Christian Boogaard
play-button     J. Mulder - Psalm 130
Temperament: Original
Registration:
Béta version
Windmodel: 100
Front: 25
Middle: 45
Rear: 100
Organist: Christian Boogaard
play-button     C.M. Widor - Allegro Vivace uit Symphony V
Temperament: Original
Registration:
Béta version
Windmodel: 100
Front: 25
Middle: 45
Rear: 100
Organist: Christian Boogaard
play-button     K. van Ingen - Een mens te zijn op aarde (Melodie Psalm 128)
Temperament: Original
Registration:
Version 1.1
Windmodel: 100
Front: 25
Middle: 45
Rear: 100
Organist: Karel van Ingen
play-button     J.P. Kellner - Was Gott tut das ist wohlgetan
Temperament: Original
Registration:
Béta version, only rear channel
Windmodel: 100
Front: 0
Middle: 0
Rear: 100
Organist: Gerard de Wit
play-button     J.P. Kellner - Was Gott tut das ist wohlgetan
Temperament: Original
Registration:
Béta version, only middle channel
Windmodel: 100
Front: 0
Middle: 100
Rear: 0
Organist: Gerard de Wit
play-button     J.P. Kellner - Was Gott tut das ist wohlgetan
Temperament: Original
Registration:
Béta version, only front channel
Windmodel: 100
Front: 100
Middle: 0
Rear: 0
Organist: Gerard de Wit
play-button     J.P. Kellner - Was Gott tut das ist wohlgetan
Temperament: Original
Registration:
Béta version, all channels
Windmodel: 100
Front: 36
Middle: 51
Rear: 100
Organist: Gerard de Wit
play-button     N. Bruhns - Preludium e klein
Temperament: Original
Registration:
Béta version
Windmodel: 100
Front: 50
Middle: 69
Rear: 100
Organist: Gerard de Wit
play-button     K. van Ingen - Vater unser im Himmelreich
Temperament: Original
Registration:
Version 1.1
Windmodel: 100
Front: 43
Middle: 50
Rear: 100
Organist: Karel van Ingen
play-button     C. Franck - Pastorale op 19
Temperament: Original
Registration:
Version 1.1
Windmodel: 100
Front: 34
Middle: 50
Rear: 100
Organist: Matthias Jongbloed
play-button     J. Alain - Choral Dorien
Temperament: Original
Registration:
Version 1.1
Windmodel: 100
Front: 34
Middle: 50
Rear: 100
Organist: Matthias Jongbloed
play-button     L. Boëllmann - Prière à Notre Dame
Temperament: Original
Registration:
Version 1.1
Windmodel: 100
Front: 15
Middle: 22
Rear: 100
Organist: Christian Boogaard
play-button     O hoofd bedekt met wonden
Temperament: Original
Registration:
Version 1.1
Windmodel: 100
Front: 29
Middle: 55
Rear: 100
Organist: Matthias Jongbloed
play-button     C. Franck - Prelude Fugue et Variation op 18
Temperament: Original
Registration:
Version 1.2
Windmodel: 100
Front: 27
Middle: 60
Rear: 100
Organist: Fred de Jong
play-button     J. Alain - Choral Cistercien
Temperament: Original
Registration:
Version 1.2
Windmodel: 100
Front: 34
Middle: 55
Rear: 100
Organist: Matthias Jongbloed
play-button     Reger - Introduction en Passacaglia
Temperament: Original
Registration:
Version 1.2
Windmodel: 100
Front: ?
Middle: ?
Rear: ?
Organist: Karel van Ingen
play-button     E. Juvin - Air Religieux
Temperament: Original
Registration:
Version 1.2 Front channel not loaded
Windmodel: 100
Front: 0
Middle: ?
Rear: ?
Organist: Andrew Lecky
play-button     A. Guilmant - Deuxieme Meditation op.20
Temperament: Original
Registration:
Version 1.2
Windmodel: 100
Front: 24
Middle: 50
Rear: 100
Organist: Matthias Jongbloed
play-button     Peyer - Praeludium en Fugue
Temperament: Original
Registration:
Version 1.2
Windmodel: 100
Front: 34
Middle: 65
Rear: 100
Organist: Andrew Lecky
play-button     C. Franck - Choral 3 A minor
Temperament: Original
Registration:
Version 1.2
Windmodel: 100
Front: 43
Middle: 50
Rear: 100
Organist: Karel van Ingen
play-button     W. de Penning - Orient Express
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 34
Middle: 53
Rear: 100
Organist: Wim de Penning
play-button     W. de Penning - Psalm 92
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 34
Middle: 53
Rear: 100
Organist: Wim de Penning
play-button     W. de Penning - Sweet melody
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 34
Middle: 53
Rear: 100
Organist: Wim de Penning
play-button     Wim de Penning - The Angels and the Shepherds
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 34
Middle: 53
Rear: 100
Organist: Wim de Penning
play-button     W. de Penning - Intrada and variations on Psalm 98
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 34
Middle: 53
Rear: 100
Organist: Wim de Penning
play-button     E. Pasini - Cantabile no 107
Temperament: Original
Registration:
Version 1.2
HW: IV
Ped: SB16; ManI: BD8; ManII: NH8, QD8, FL4;
ManIII(cf): HP8, FH4, NA3, WF2, TE135;
Ped+I, Ped+II.
Windmodel: 100
Front: 29
Middle: 57
Rear: 100
Organist: Carson Cooman
play-button     W. de Penning - You never walk alone
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 34
Middle: 53
Rear: 100
Organist: Wim de Penning
play-button     C. Boogaard - You never walk alone
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 34
Middle: 53
Rear: 100
Organist: Christian Boogaard
play-button     W. de Penning - Psalm 101
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 34
Middle: 53
Rear: 100
Organist: Wim de Penning
play-button     W. de Penning - Musique de sortie festive
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 34
Middle: 53
Rear: 100
Organist: Wim de Penning
play-button     W. de Penning - Geest van Hierboven
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 34
Middle: 53
Rear: 100
Organist: Wim de Penning
play-button     M. Duprê - Ave maris stella
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 48
Middle: 63
Rear: 100
Organist: Christian Brembeck
play-button     A. Fleury - Noël bourguignon
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 52
Middle: 50
Rear: 100
Organist: Christian Brembeck
play-button     E. Granados - Quejas, o la Maja y el Ruiseñor uit Goyescas
Temperament: Original
Registration:
Version 1.2
HW: V
Arrangement by Rogier van Otterloo and Ronald IJmker
Original arranged for Piano
Playing Granados himself:Quejas, o la Maja y el Ruiseñor from Goyescas
Windmodel: 100
Front: 25
Middle: 50
Rear: 100
Organist: Ronald IJmker
play-button     L. Boëlmann - Suite-Gothique
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 25
Middle: 50
Rear: 100
Organist: Ronald IJmker
play-button     J. Lemmens - Marche Triomphale
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 25
Middle: 50
Rear: 100
Organist: Ronald IJmker
play-button     G. Young - Toccata on Ein Feste Burg
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 25
Middle: 50
Rear: 100
Organist: Ronald IJmker
play-button     G. Young - The Happy Trumpeter
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 25
Middle: 50
Rear: 100
Organist: Ronald IJmker
play-button     G. Young - The Angelus
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 25
Middle: 50
Rear: 100
Organist: Ronald IJmker
play-button     G. Young - Divertissement
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 25
Middle: 50
Rear: 100
Organist: Ronald IJmker
play-button     G. Young - Sarabande
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 25
Middle: 50
Rear: 100
Organist: Ronald IJmker
play-button     G. Young - Psalm XX
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 25
Middle: 50
Rear: 100
Organist: Ronald IJmker
play-button     G. Young - Pavane
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 25
Middle: 50
Rear: 100
Organist: Ronald IJmker
play-button     G. Young - Modal Prelude
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 25
Middle: 50
Rear: 100
Organist: Ronald IJmker
play-button     G. Young - Grand Choeur
Temperament: Original
Registration:
Version 1.2 HW V
Windmodel: 100
Front: 25
Middle: 50
Rear: 100
Organist: Ronald IJmker
play-button     L. Vierne - Berceuse
Temperament: Original
Registration:
Version 1.4 HW V
Windmodel: 100
Front: 29
Middle: 57
Rear: 100
Organist: Matthias Jongbloed

Download Information
of
the Elbertse/Adema organ from the Laurentius & Elisabeth Kathedraal in Rotterdam


Important : Before download, first read the comments below at "General".

Downloadfiles:

DOWNLOAD 1
Laurentius-Rotterdam-Version14-HW5-part1.CompPkg_Hauptwerk_rar MD5:
Checksum 195E06E4322FE5B6CC30FAF92770EDDB Size 3,8 GB

DOWNLOAD 2
Laurentius-Rotterdam-Version14-HW5-part2.CompPkg_Hauptwerk_rar MD5:
Checksum 8A03490B63097871D284A309A28DFF2A Size 3,8 GB

DOWNLOAD 3
Laurentius-Rotterdam-Version14-HW5-part3.CompPkg_Hauptwerk_rar MD5:
Checksum 197BD18D59CA0CD108421335124860F3 Size 3,8 GB

DOWNLOAD 4
Laurentius-Rotterdam-Version14-HW5-part4.CompPkg_Hauptwerk_rar MD5:
Checksum 30F5D129E416E93521DEA00341DF8878 Size 3,8 GB

DOWNLOAD 5
Laurentius-Rotterdam-Version14-HW5-part5.CompPkg_Hauptwerk_rar MD5:
Checksum 5F15FB6DC6EA275EE5B0B5F5E09348DE Size 3,8 GB

DOWNLOAD 6
Laurentius-Rotterdam-Version14-HW5-part6.CompPkg_Hauptwerk_rar MD5:
Checksum 316F886744D8C548AD812F7B36D2EA99 Size 3,8 GB

DOWNLOAD 7
Laurentius-Rotterdam-Version14-HW5-part7.CompPkg_Hauptwerk_rar MD5:
Checksum 7B16ED5D15447F8B8F166D2B2CC45CBA Size 3,8 GB

DOWNLOAD 8
Laurentius-Rotterdam-Version14-HW5-part8.CompPkg_Hauptwerk_rar MD5:
Checksum D650090D4241068B1E871874F5454CDD Size 3,2 GB

DOWNLOAD 9
Niet beslist nodig: de inhoud van de bijgeleverde Demo-DVD MD5:
Checksum DDBE9F5C6EB33A339B41457AA24E80A5 Size 3,0 GB



General:

Important: Download the latest licensing packages file https://www.hauptwerk.com/licensingpackages/
Start Hauptwerk V (or higher) and install this file via the menu File | Install Organ, Temperament, or Impulse Response Reverb... Hauptwerk will 'learn' which protected sets are currently on the market.

For users of Hauptwerk 5 or higher:

  1. Make sure that Hauptwerk is not loaded.
  2. Open your iLok account and choose Licenses/Redeem Activation code and cut and paste the many-digit code into the screen.
  3. Activate your license to iLok Cloud or to the iLok dongle. In the latter case: then place the dongle on the Hauptwerk PC.
    It appears that this rule is not clear to everyone:
    • 3a: Go to your iLok account (log in if necessary) and select the sample set for which you want to enter the activation code.
    • 3b: At the top right of the iLok screen is a gray/green check mark.
      If you go over this with the mouse you will see the text "Activate licenses".
      Click on this check mark and you will see a new screen.
    • 3c: Click on Activate and Ok. Now the checkmark in the previous screen turns green.
    • 3d: Now double-click on the line you are working on and the screen that opens must show "License status active" on the top line.
    • 3e: If necessary, repeat the above for the eventualy other newly purchased organs.
  4. Restart Hauptwerk and you can install and use the organ.

Before download and install, note the following:

  1. Download all .CompPkg.Hauptwerk files.
  2. Load these files in the same folder and
  3. Do not change the file names and
  4. Do not unpack by hand.
  5. Check the MD5 checksums with the WinMD5 program, free to download from
    http://www.winmd5.com or http://www.fastsum.com
    If a checksum is incorrect, throw the wrong download file away from the PC and download that file again.
  6. Start Hauptwerk (File/Install organ....), selecteer in de map waarin u de bestanden zojuist hebt gedownload,
    het bestand met extensie .CompPkg_Hauptwerk_rar in Hauptwerk's component installer.
    Hauptwerk automatically finds the other files.
  7. If you get error messages, scroll to the end of the log file (this opens automatically if something goes wrong when unpacking) to see what goes wrong.
    Usually a file is missing, or there is a file in the wrong folder or a file is damaged.
  8. Before loading the organ, first have a look at the system information regarding the expected memory usage etc.

Note: Please contact us via the Contact form if you encounter any issues; we will try to assist you.

System requirements
of
the Elbertse/Adema organ from the Laurentius & Elisabeth Kathedraal in Rotterdam


The computer

To play the complete version of this sample set without restrictions requires a modern, fast computer with, for example, Windows 10 64 bit installed and around 32 GB of RAM.
Obviously Hauptwerk must also be installed with the latest version 5 (or higher) Advanced.
It is said that the best results are achieved using Apple-MacIntosh computers; however, we have no experience with this. It is difficult to make exact statements about what is needed. The "mother" website hauptwerk.com provides much information about this issue.
Prerequisites
.
Please note: This information applies to the newest version of Hauptwerk.
This virtual Elbertse/Adema Laurentius organ can be downloaded. The set is protected with the Hauptwerk Protection System via the iLok account or dongle from your Hauptwerk program.
Below is a table of memory usage .
On other systems, these values can vary considerably! Please note that your Operating System also requires considerable memory.


The sound card

A good internal or external sound card. For more information go to: hauptwerk.com .


Manuals/keyboards/pedal òr complete organ with MIDI out

2 manuals/keyboards and a (at least 25 keys) pedal òr a complete electronic organ with MIDI out. Beautiful consoles specifically designed for Hauptwerk are commercially available.
In the Netherlands these are available through, for example,

Those who are technically inclined can provide their keyboard with MIDI capability using hardware from, for example, WIRA, MIDI-Hardware.com or MGB . We ourselves have done this using a Heyligers organ dating from around 1975 (using WIRA hardware). The conversion was about 300 Euro and everything has worked perfectly for years.


Speakers/headphone

The superb sound quality of Hauptwerk is best experienced through high-quality headphones, such as AKG or Sennheiser.
We prefer connecting the sound card to a (possibly multi-channel) sound system. The above mentioned companies can also advise you on any purchases in this area.
What you definitely should not do is listen to Hauptwerk through the built-in speakers of the monitor or a set of €10 computer speakers!



Table of memory usage
for
the Elbertse/Adema organ from the Laurentius & Elisabeth Kathedraal in Rotterdam

Hauptwerk 6 (space needed on the hard drive is ca. 10 GB)

The meaning of the columns: A = Number of loaded channels B = Compression applied? C = Bit rate Pipe samples D = Multi-release pipe loaded? E = Organ cache (GB) F = RAM usage, Operating System not included (GB)

Please note that the stated values are an approximation !

De nrs. 1-2-3: is for loading mode 16 bit, single release compressed (a possibility but we think the quality is insufficient). De nrs. 4-5-6: is for loading mode 16-bit, compressed and multi release (the standard Hauptwerk loading mode). De nrs. 7-8-9: is for loading mode 16 bit, uncompressed and multi release. De nrs. 10-11-12: is for loading mode 20-bit, compressed and multi release. De nrs. 13-14-15: is the loading mode 20 bit, multi release uncompressed (we prefer this if you have enough memory). There are of course many more variants, e.g. pipe samples loaded at 24 bit and sounds at 16 bit, etc. If you're having trouble, send us your question by filling in the Contact form.

nr. Definition A B C D E F
1 (16 bit) with 1 channel loaded single release compressed 1 16 4,5 4,8
2 (16 bit) with 2 channels loaded single release compressed 2 16 9,0 9,5
3 (16 bit) with 3 channels loaded single release compressed 3 16 13,5 14,3
4 (16 bit) with 1 channel loaded multi release compressed (Standard Hauptwerk) 1 16 7,4 7,6
5 (16 bit) with 2 channels loaded multi release compressed (Standard Hauptwerk) 2 16 14,6 15,1
6 (16 bit) with 3 channels loaded multi release compressed (Standard Hauptwerk) 3 16 22,0 22,7
7 (16 bit) with 1 channel loaded multi release uncompressed 1 16 7,0 11,9
8 (16 bit) with 2 channels loaded multi release uncompressed 2 16 14,1 23,8
9 (16 bit) with 3 channels loaded multi release uncompressed 3 16 21,2 35,8
nr. Definition A B C D E F
10 (20 bit) 1 channel loaded multi release compressed 1 20 11,8 12,3
11 (20 bit) 2 channels loaded multi release compressed 2 20 23,5 24,3
12 (20 bit) 3 channels loaded multi release compressed 3 20 35,3 36,4
13 (20 bit) 1 channel loaded multi release uncompressed 1 20 11,4 22,9
14 (20 bit) 2 channels loaded multi release uncompressed 2 20 22,8 45,8
15 (20 bit) 3 channels loaded multi release uncompressed 3 20 ? ?
Screen layout
of
the Elbertse/Adema organ from the Laurentius & Elisabeth Kathedraal in Rotterdam

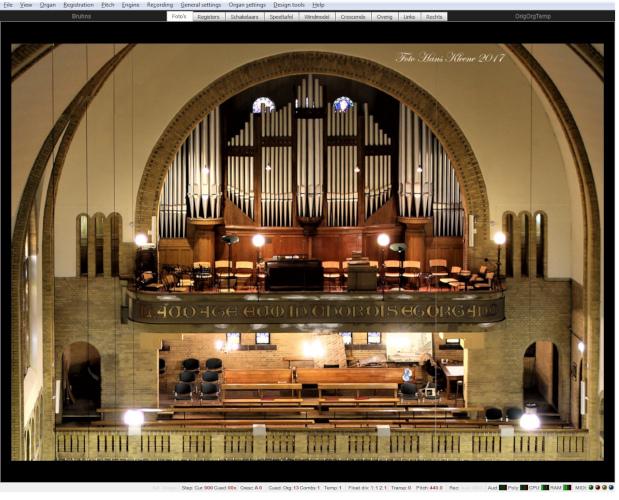

Tab 1 : Foto's (Pictures)

laurentius_04
Organfront - Photo: Hans Kleene
Schiedam_02
The Church - Photo: Joop Nijs

On this tab the front of the organ, if you click on the picture, you can see the church.



Tab 2 : Registers (Stops)

laurentius_06
Simple panel

On this tab, we see a simpler representation of the stops more suitable for users of touch screens.
All stops and playing aids specifically made for Hauptwerk are underlined here.
The stops of manual II have pipes up to g''''. Using the 'S' buttons the stop sounds one octave up.
The button "MOTOR" switched the wind engine.
The button "TREMULANT MANUAAL I": Manual I has no tremulant on the real organ but for the enthusiast we have added one.

The sliders "Voor" (Front), "Midden" (Middle) and "Achter" (Rear) allows you to set the ratio of the various channels thereby determining your listening position.
If you prefer a direct sound, select a high value for "Voor" and low values for "Midden" and "Achter".
If you prefer an indirect sound, then you should adjust "Midden" and "Achter" to higher values.

The 4th slider (with the caption "II" is the swell pedal from manual II, 5th slider is the swell pedal from manual III. All these sliders can be used if desired to be connected to a swell pedal. Moving the mouse verticaly over the digital crescendo pointer changes the position of the Crescendo.
This pointer can also connected to a swell pedal. .

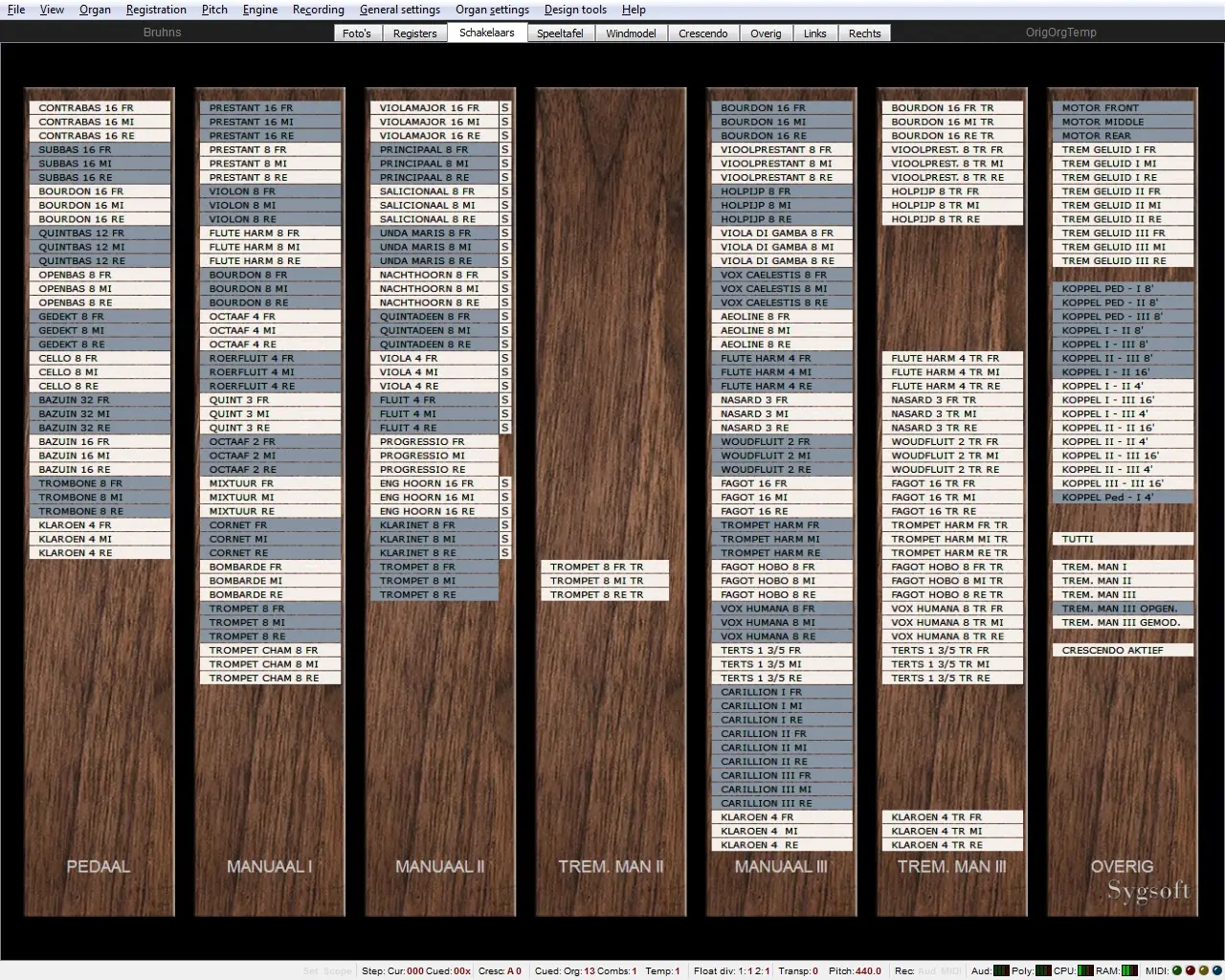

Tab 3 : Schakelaars (Switches)

laurentius_07
Switches

Most elements of this page need not actually be visible but are still of interest if only to give a bit of an idea of what needs to be done to get a sample set of this magnitude working. Just remember that behind every (manual) stop control there are 56 long, 56 long release, 56 medium release, and 56 short-release samples. In addition there are also 56 tremulant and 56 tremulant release samples for the Hoofdwerk. The same applies to the pedal with 30 samples (here without tremulant). In total approximately 38.000 samples.

Furthermore, it is useful to know that if you right-click on a switch, you will be immediately directed to the appropriate voicing screen.

In the middle above you will find 4 buttons "Cresc man I", "Cresc man II", "Cresc man III", "Cresc man Ped". With these buttons you can determine whether the General Crescendo works on these manuals or not.

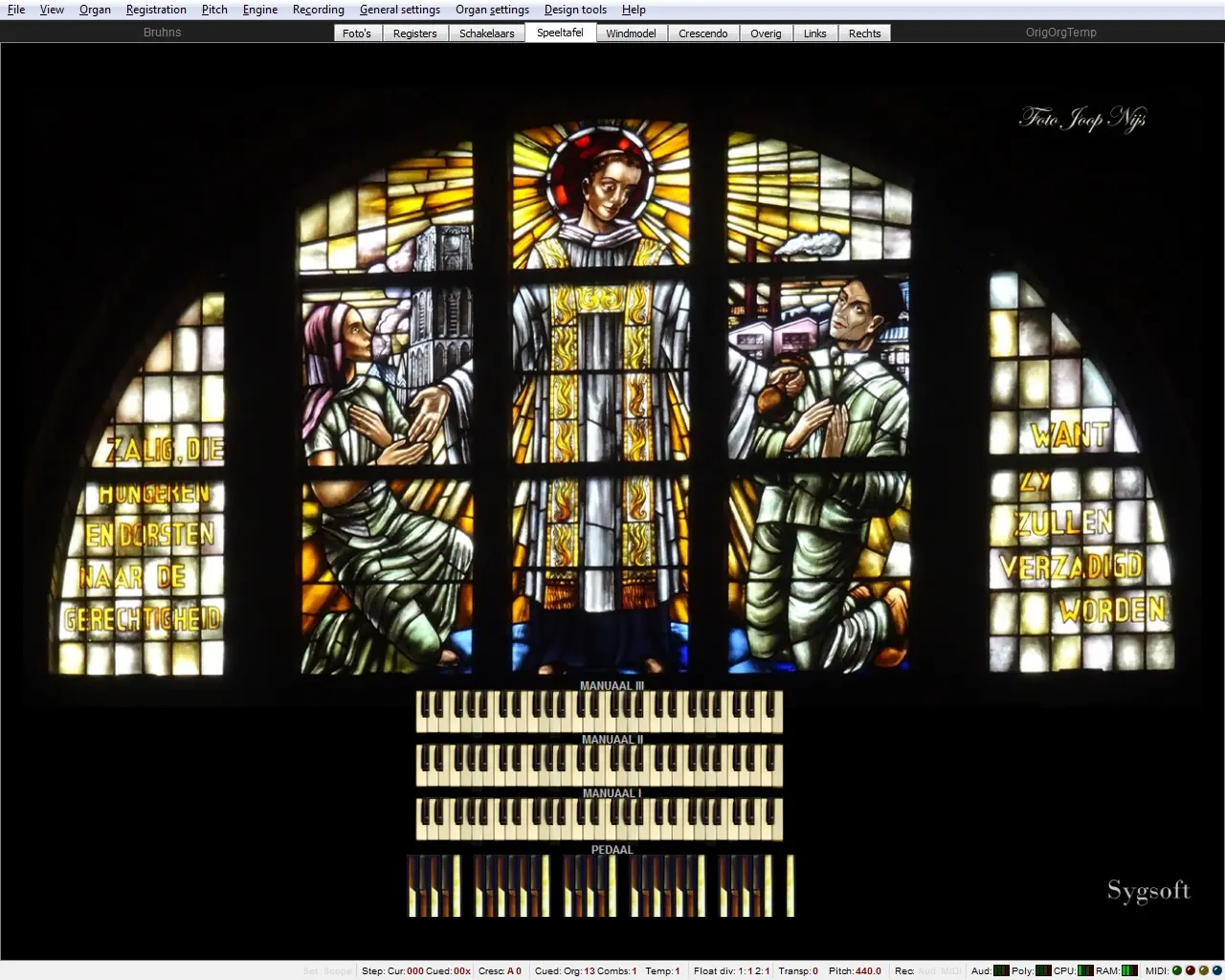

Tab 4 : Speeltafel (Virtual Console)

laurentius_08
The virtual Console

This screen is only used to connect the various manuals with your console. Right-click on the manual to be connected.




Tab 5 : Windmodel (Wind)

laurentius_09
The windmodel

This tab shows a schematic representation of the wind supply for this organ.
With the various sliders you can control the flow of wind for the bellows and the various chests.
The "R" or reset buttons, allow you to return to the settings that, in our view, yield the best results. With the button "Sygsoft," below on the right, you can reset all six sliders at once.

Important:

Should you decide not to load a portion of this sample set (e.g. your computer RAM is too small and you choose to omit all "Rear" samples) then the wind consumption is reduced by 33% and the organ becomes much less sensitive to the wind than it actually is.
In this case, go to Organ settings / Organ preferences / Wind supply model and choose a value of around 150%. Should you load only one position, e.g. "Middle," (thereby reducing the wind consumption by 66%) then you must set this value to about 300% to obtain the same result.
Obviously you can select any value you wish if the organ's behaviour is not to your liking.
If the Wind Supply Model-tab is left unchecked, you can completely disable its function.

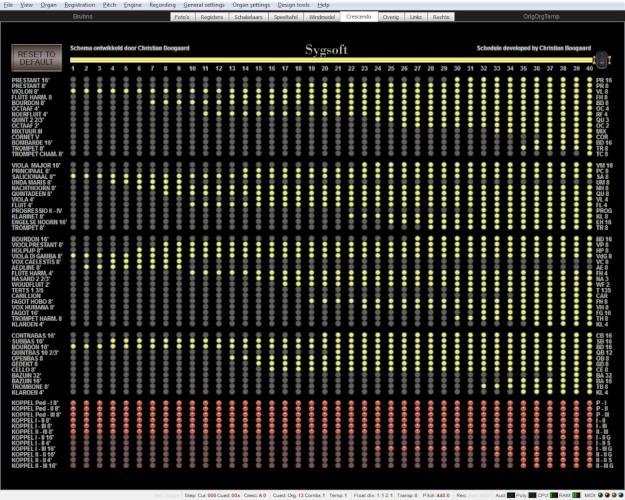

Tab 6 : Crescendo (General crescendo screen)

laurentius_10
The Crescendo screen

On this tab a schematic representation of the crescendo pedal.
Here you can create your own taste and make one or more schemes and save them via Registration / Save combination set as ... or Re-save current combination set.
With the button "Reset to default" you switch on the schedule scheme that Christian Boogaard has developed.
You can also start from this Default scheme and this change and save.
By clicking the mouse button on the right and moving the cursor vertically you can move the Crescendo cursor.

Each register button that works on the general crescendo has an LED next to or above the button on the 3 registration screens. So you have control at any time during playing which stops are enabled/disabled via the general crescendo.




Tab 7 : Overig (About)

laurentius_11

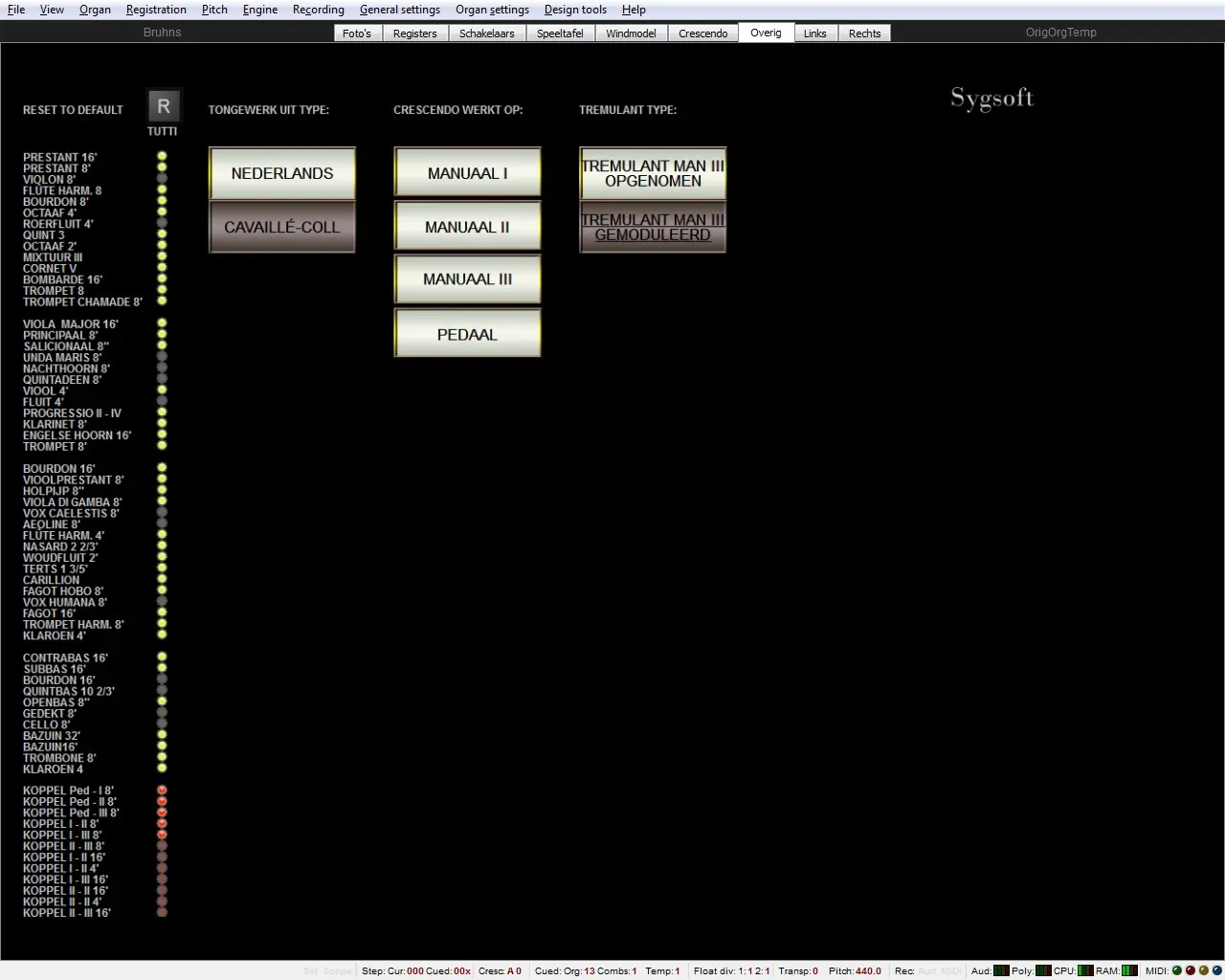

The "Overig" screen

On this tab you can indicate which registers should be switched on with the "Tutti" button. You can change and save this schedule.
With the button "R" you return to the default setting.

Under "Crescendo werkt op:" you will find 4 buttons "Cresc man I", "Cresc man II" , "Cresc man III" , "Cresc man Ped" . With these buttons you can determine whether General Crescendo works on these manuals or not.

Under "Tongwerk uit" type, you will find two buttons "NEDERLANDS" and "CAVAILLÉ-COLL" . If you choose for Nederlands (Dutch), then on the tabs "Registers" and "Rechts" the yellow LED burns next to the button Tongwerk uit and if you choose Cavaillé-Coll then burns the red LED. The reeds are switched off according to the following scheme:


Rank Nederlands (Dutch) Cavaillé-Coll
Manuaal I
08-Quint 3'
09-Octaaf 2'
10-Mixtuur
11-Cornet
12-Bombarde 16'
13-Trompet 8'
14-Trompet Chamade 8'
















Manuaal II
23-Progressio
24-Klarinet 8'
25-Engelse Hoorn 16'
26-Trompet 8'










Manuaal III
34-Nasard 3'
35-Woudfluit 2'
36-Terts
37-Carillion
38-Fagot Hobo 8'
39-Vox Humana 8'
40-Fagot 16'
41-Trompet Harmonique 8'
42-Klaroen 4'



















Pedaal
49-Bazuin 32'
50-Bazuin 16'
51-Trombone 8'
52-Klaroen 4'













Tab 8 : Links/Rechts (Left/Right)

laurentius_12

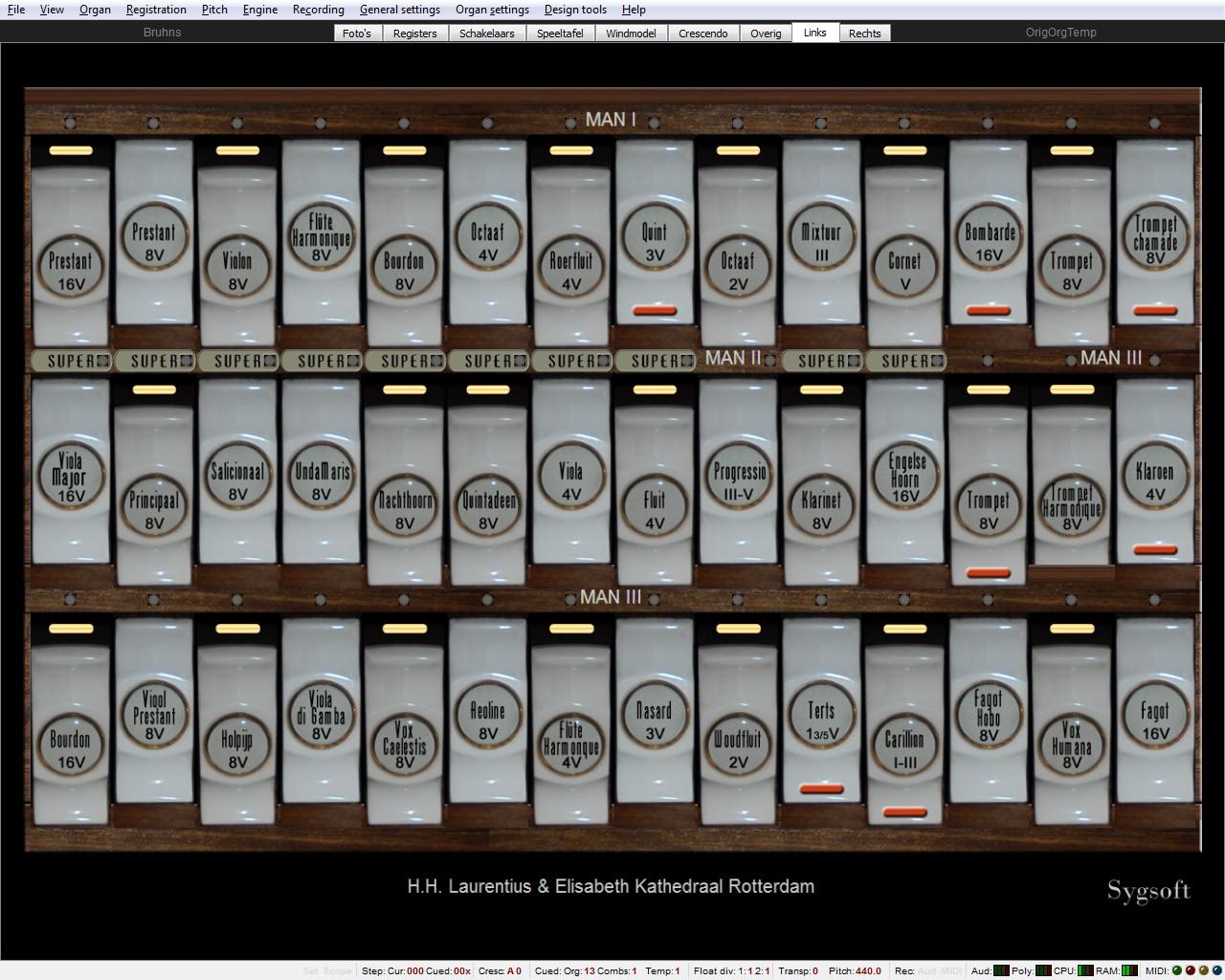

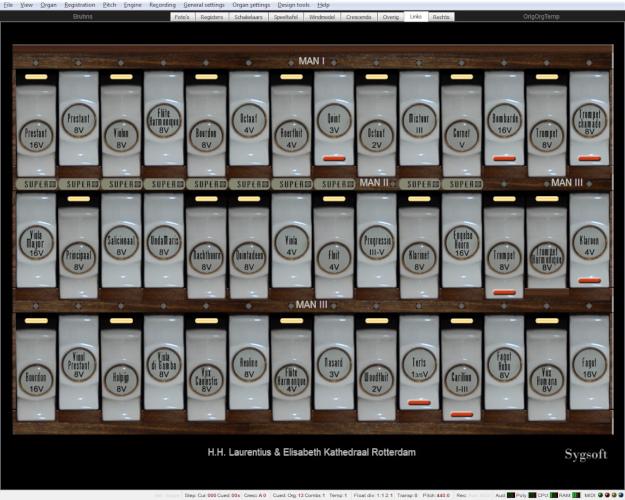

The Left screen (Landscape)
laurentius_13
The Right screen (Landscape)
laurentius_14
The Left screen (Portrait)
laurentius_15

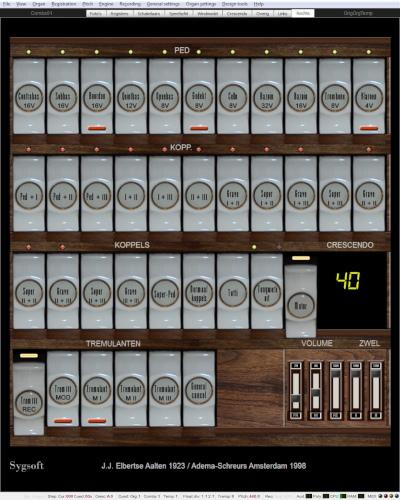

The Right screen (Portrait)

These tabs can be used if you use two touchscreens.
The buttons marked with a red stripe are not original.



You listen to the Elbertse/Adema organ from the Laurentius & Elisabeth Kathedraal in Rotterdam
