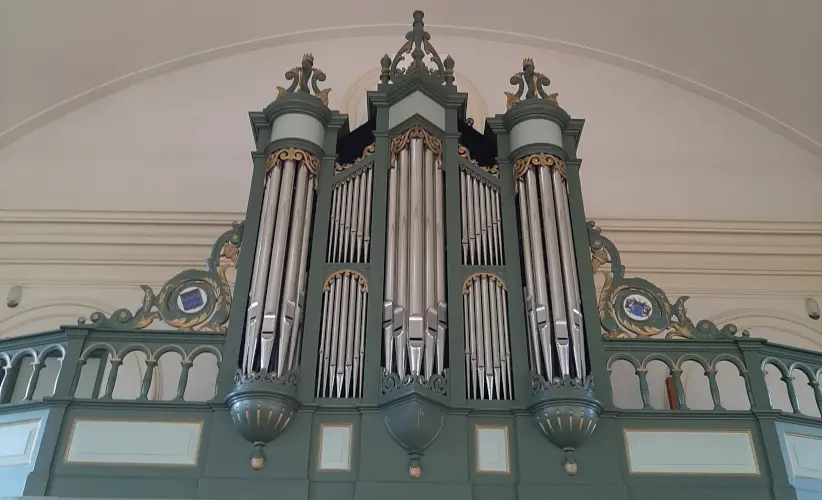

The Van Eeken organ from the Hervormde kerk in Hoogblokland (NL)

€ 98,-

Photo: Janco Schout


play-buttonDEMO AFSPELEN
Feike Asma - Op bergen en in dalen

In September 2022, we recorded the Van Vulpen organ from the Hoflaankerk in Rotterdam for Hauptwerk (as of version 5).

About this organ

In 2002, Henk van Eeken built a new interior in Van den Bijlaardt's organ case in the Reformed Church in Hoogblokland.
Some pipework from Vollebregt was used during construction. Advisor on the work was Aart Bergwerff.
He played the organ during its official commissioning on November 14, 2002.
The Van den Bijlaardt organ was put into use on April 19, 1900. It was an organ with a manual with ten voices and an attached pedal.
In 1976 it was overhauled by Jan Hoogenes. The keyboard was renewed and the disposition was changed.
The Bourdon 16' placed Hoogenes as an independent register on the pedal. Furthermore, the Vox Celeste was removed, and a Sesquialter and a Mixture were added to the keyboard.
He replaced the Trompette with a new one.



About the recordings

Three channel technology
Sliders on the 'console' tab

All used samples are recorded in stereo from 3 positions (24-bit 96kHz).
As one of the final steps, the samples are converted to 24-bit 48kHz.
The set is delivered in the 3-channel technique devised by Sygsoft, allowing the user to adjust the listening position themselves.
There are 3 positions:
1: Front, recorded very close to the organ. This provides a very direct recording that is useful for study purposes.
2: Middle, this recording was made at about 3 times the distance used in the front recording.
3: Rear, recorded far from the organ is used as surround.
Through three sliders (0-100%), a mix can be made of the three positions that is to your liking.
A good starting point for setting the sliders is e.g. Front-Middle-Rear 25-60-100
More information see: tab System requirements.

Other details

The recordings for this sample set were made in september 2022.
Recording quality 96 kHz, 24 bit. The set is reduced to 48 kHz 24 bit.
Number of microphones: 8.
Number of samples processed in this set: 17.000
Number of lines in the Organ Definition File (ODF): ca. 1.170.000

Division of the Work

Fred de Jong:
ODF, Screen layout, additional control samples and loops.

Johan van der Waal van Dijk:
Processing of the samples and technical advice.

Christian Boogaard:
Noise reduction, adjusting the wind model, intonation, demos, artistic advice and overall management.

Wenneke Boogaard:
Administration and website.

Specification
of
the Van Eeken organ from the Hervormde kerk in Hoogblokland

(green has been added for Hauptwerk)

Man. I: C-f''
(for Hauptwerk
extended to g'')
Man. II: C-f''
(for Hauptwerk
extended to g'')
Pedal: C-f'
Coupler:
Bourdon
Prestant
Holpijp
Octaaf
Roerfluit
Quint
Superoctaaf
Mixtuur
Cornet
Trompet
Tremulant
16'
8'
8'
4'
4'
3'
2'
III ranks
V ranks
8'

Bourdon
Viola di Gamba
Vox Céleste
Gedekte Fluit
Nasard
Gemshoorn
Terts
Dulciaan
Tremulant



8'
8'
8'
4'
3'
2'
1 3/5'
8'




Bourdon
Gedekt
Octaaf
Basson








16'
8'
4'
16'








Man I + Man II
Ped. + Man I
Ped. + Man II





















Demos
of
the Van Eeken organ from the Hervormde kerk in Hoogblokland


Composer:
Organist:

play-button     Feike Asma (arr. Bert Kruis) - Op bergen en in dalen
Temperament: Original
Registration:
Divers
Windmodel: 100
Front: 48
Middle: 76
Rear: 100
Organist: Christian Boogaard
play-button     Jan Mulder - Wie maar de goede God laat zorgen
Temperament: Original
Registration:
Divers
Windmodel: 100
Front: 48
Middle: 76
Rear: 100
Organist: Christian Boogaard
play-button     Rogier van Otterlo - Rondo
Temperament: Original
Registration:
Divers
Windmodel: 100
Front: 48
Middle: 76
Rear: 100
Organist: Christian Boogaard


play-button     Gordon Neville - Toccata
Temperament: Original
Registration:
Divers
Windmodel: 100
Front: 53
Middle: 69
Rear: 100
Organist: Christian Boogaard
play-button     Rien Donkersloot - O Heer die onze Vader zijt
Temperament: Original
Registration:
Divers
Windmodel: 100
Front: 48
Middle: 76
Rear: 100
Organist: Christian Boogaard
play-button     Bert Kruis - Psalm 97
Temperament: Original
Registration:
Divers
Windmodel: 100
Front: 53
Middle: 69
Rear: 100
Organist: Christian Boogaard

Download Information
of
the Flentrop organ from the Grote- or St. Janskerk in Schiedam


Important: Before download, first read the comments below at "General".

Download files: After purchasing this sample set, you will receive access to the download files via your email.



General:

Instructions for download and install a sample set

Before download and install, note the following:

  1. Download all .CompPkg.Hauptwerk files.
  2. Load these files in the same folder and
  3. Do not change the file names and
  4. Do not unpack by hand.
  5. Check the MD5 checksums with the WinMD5 program, free to download from
    http://www.winmd5.com or http://www.fastsum.com
    If a checksum is incorrect, throw the wrong download file away from the PC and download that file again.
  6. Start Hauptwerk (File/Install organ....), selecteer in de map waarin u de bestanden zojuist hebt gedownload,
    het bestand met extensie .CompPkg_Hauptwerk_rar in Hauptwerk's component installer.
    Hauptwerk automatically finds the other files.
  7. If you get error messages, scroll to the end of the log file (this opens automatically if something goes wrong when unpacking) to see what goes wrong.
    Usually a file is missing, or there is a file in the wrong folder or a file is damaged.
  8. Before loading the organ, first have a look at the system information regarding the expected memory usage etc.

Note: Please contact us via the Contact form if you encounter any issues; we will try to assist you.


System requirements
of
the Van Eeken organ from the Hervormde kerk in Hoogblokland


The computer

To play the full version of this sample set without restrictions requires a modern, fast computer with, for example, Windows 10 64 bit installed and around 16 GB of RAM.
Obviously Hauptwerk must also be installed with the latest version 5 (or higher) Advanced.
It is said that the best results are achieved using Apple-MacIntosh computers; however, we have no experience with this. It is difficult to make exact statements about what is needed. The "mother" website hauptwerk.com provides much information about this issue.
Prerequisites
.
Please note: This information applies to the newest version of Hauptwerk.
This virtual van Eeken organ can be downloaded.
Please note that your Operating System requires considerable memory.


The sound card

A good internal or external sound card. For more information go to: hauptwerk.com .


Manuals/keyboards/pedal òr complete organ with MIDI out

2 manuals or keyboards and a (at least 25 keys) pedal òr a complete electronic organ with MIDI out.
Beautiful consoles specifically designed for Hauptwerk are commercially available.
In the Netherlands these are available through, for example,

Those who are technically inclined can provide their keyboard with MIDI capability using hardware from, for example, WIRA, MIDI-Hardware.com or MGB . We ourselves have done this using a Heyligers organ dating from around 1975 (using WIRA hardware). The conversion was about 300 Euro and everything has worked perfectly for years.


Speakers/headphone

The superb sound quality of Hauptwerk is best experienced through high-quality headphones, such as AKG or Sennheiser.
We prefer connecting the sound card to a (possibly multi-channel) sound system. The above mentioned companies can also advise you on any purchases in this area.
What you definitely should not do is listen to Hauptwerk through the built-in speakers of the monitor or a set of €10 computer speakers!



Beeldscherm lay-out
van
het Van Eeken orgel van de Hervormde kerk in Hoogblokland

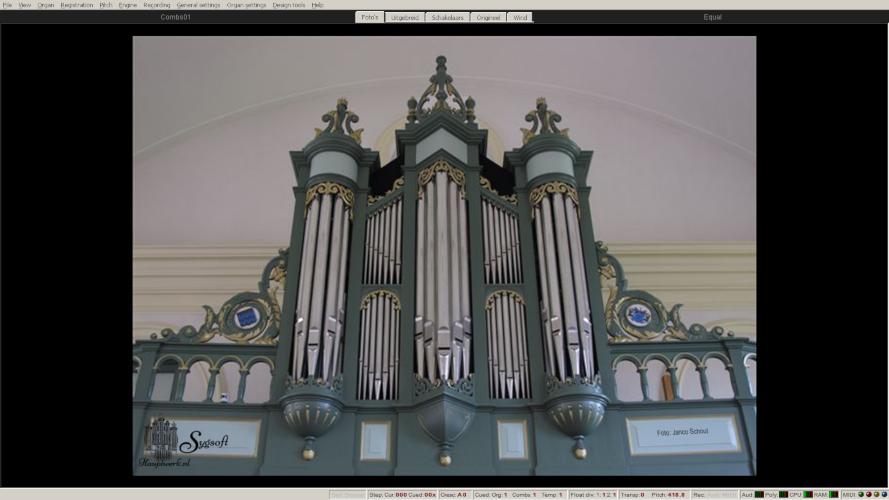

Tab 1 : Foto's (Photos)
hoogblokland_04
Orgelfront

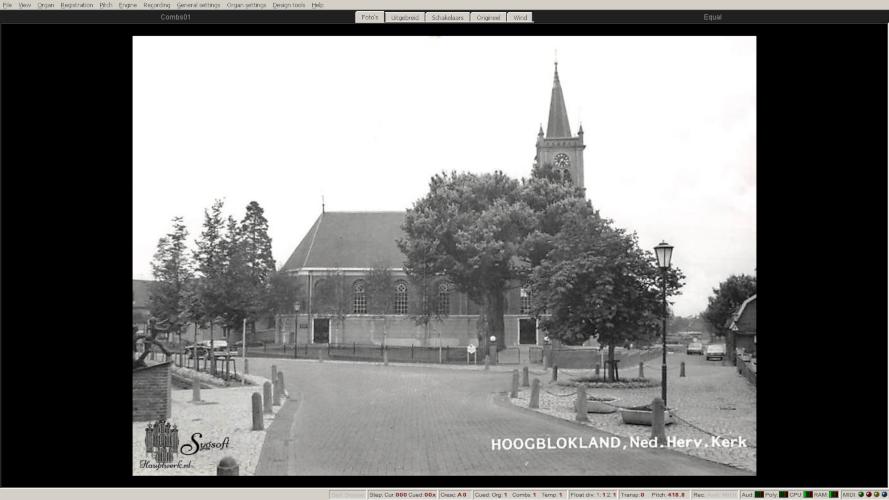

hoogblokland_05
The church

This tab shows the front of the organ and if you click on the photo you will see an old photo of the church.

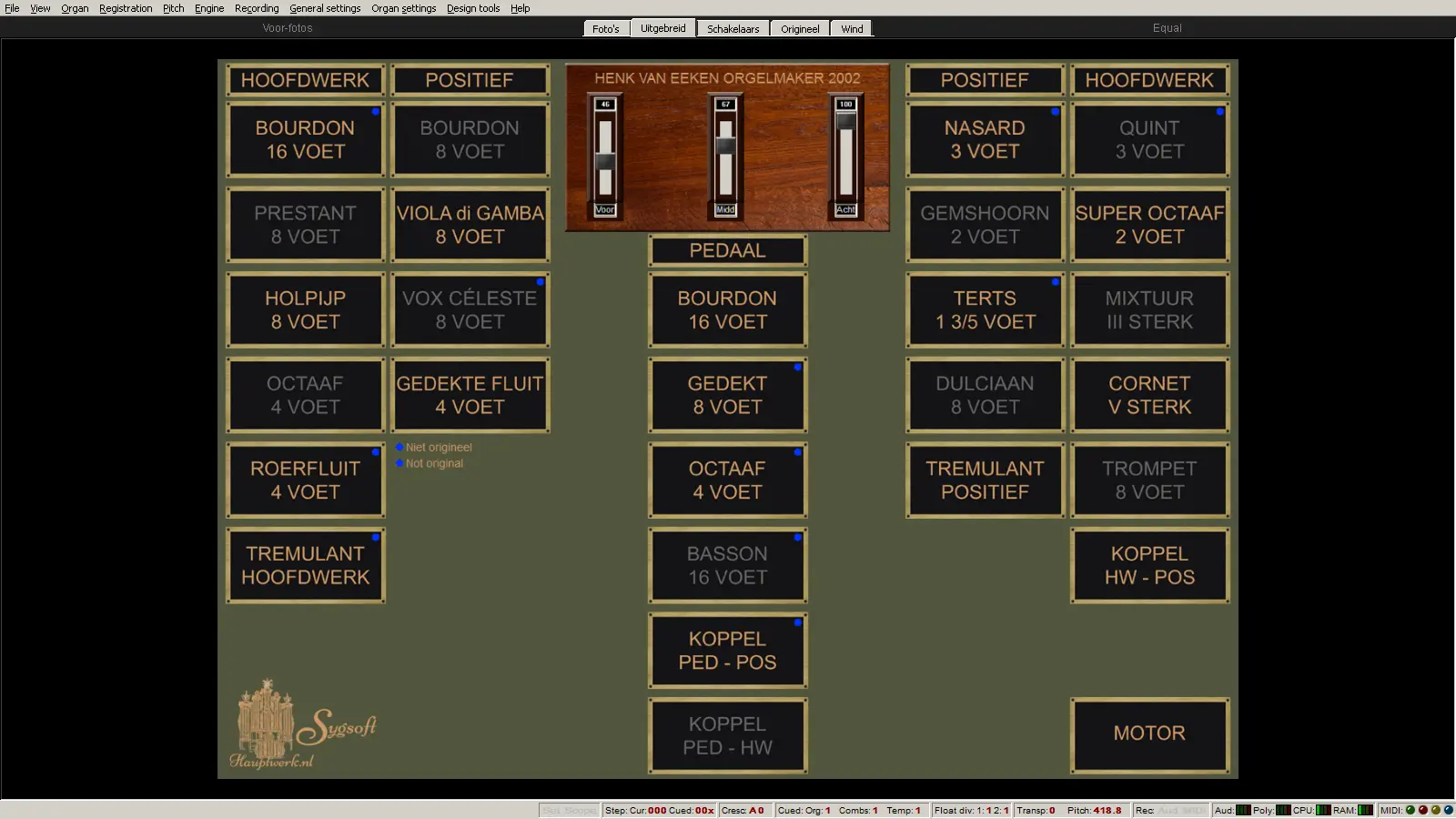

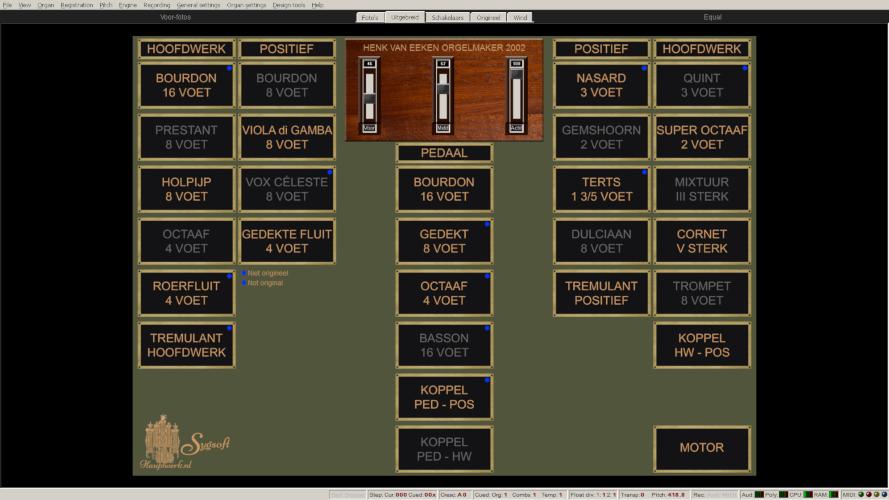

Tab 2 : Uitgebreid (The extended registry panel):
hoogblokland_06
The extended registry panel

This tab provides a simplified representation of the registers of this organ.
The buttons with the blue dot were added for Hauptwerk using samples from this organ.
The "Motor" button turns on the wind motor.
Note: This organ does not have a tremulant on the Hoofdwerk, but through some "truckage" we were able to create a (recorded) tremulant on this work.

The 3 sliders at the top center can be used to adjust the volume of the various channels, which broadly determines your listening position. A good starting point is Front-Middle-Rear b.v. 25-60-100

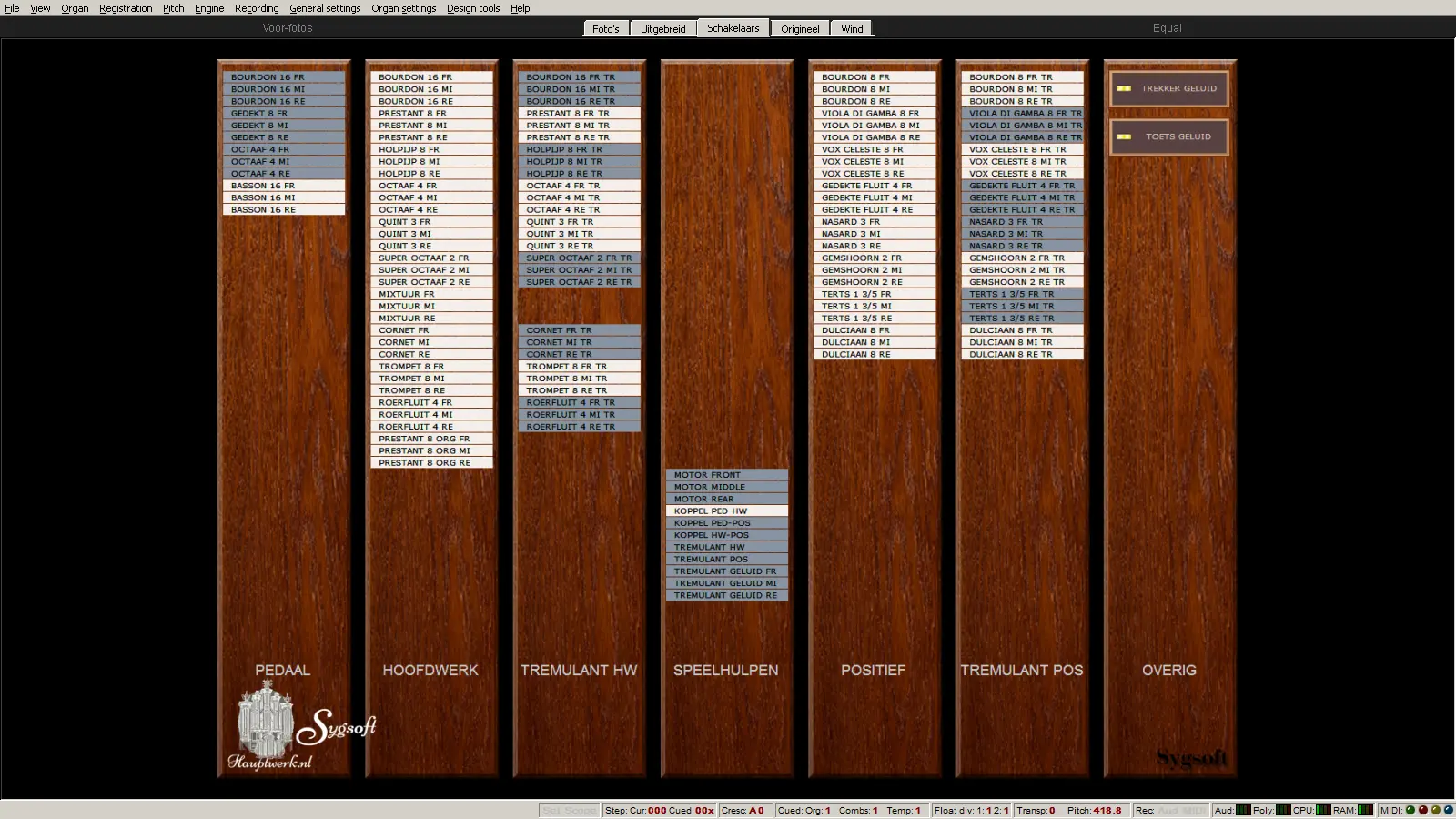

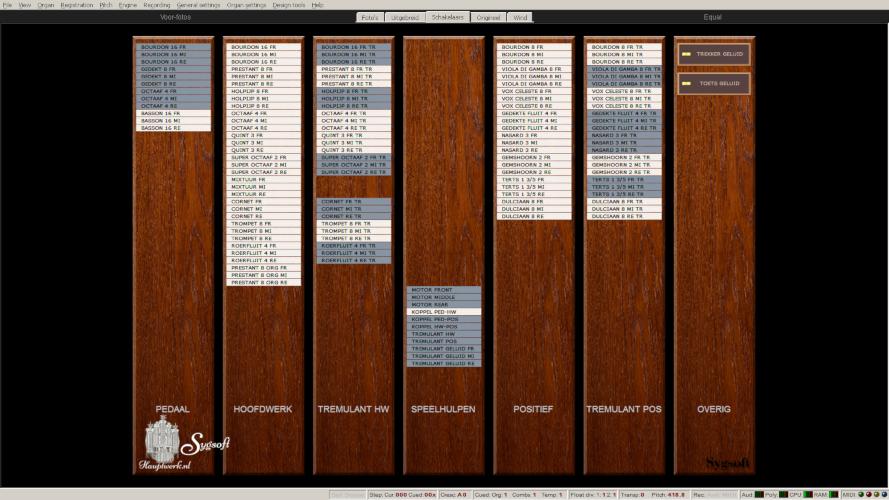

Tab 3 : Schakelaars (Switches)
hoogblokland_07
Switches

Most elements of this tab do not actually need to be visible, but for those interested it still provides a a bit of an impression of what needs to be done to get a sample set of this size working.
Consider that behind each (manual) button there are 56 long, 56 long release, 56 medium release and 56 short release samples. The same applies to the pedal, but always 30 pieces.

It is also useful to know that if you right-click on a switch you can immediately access the correct voicing screen.

In the "Overig" column you will find a number of buttons:

With the button "Trigger sound" you can choose whether or not you want to hear the sounds of the register pullers.
With the button "Key sound" you can choose whether or not you want to hear the sounds of the keys.

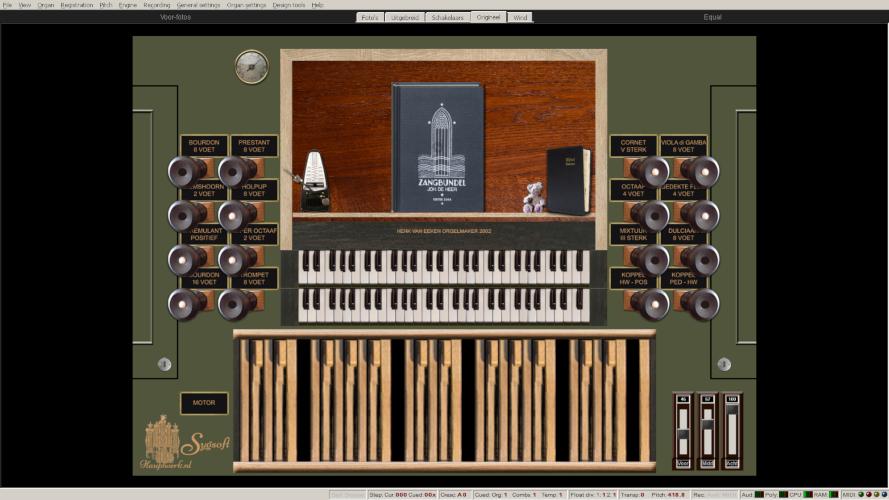

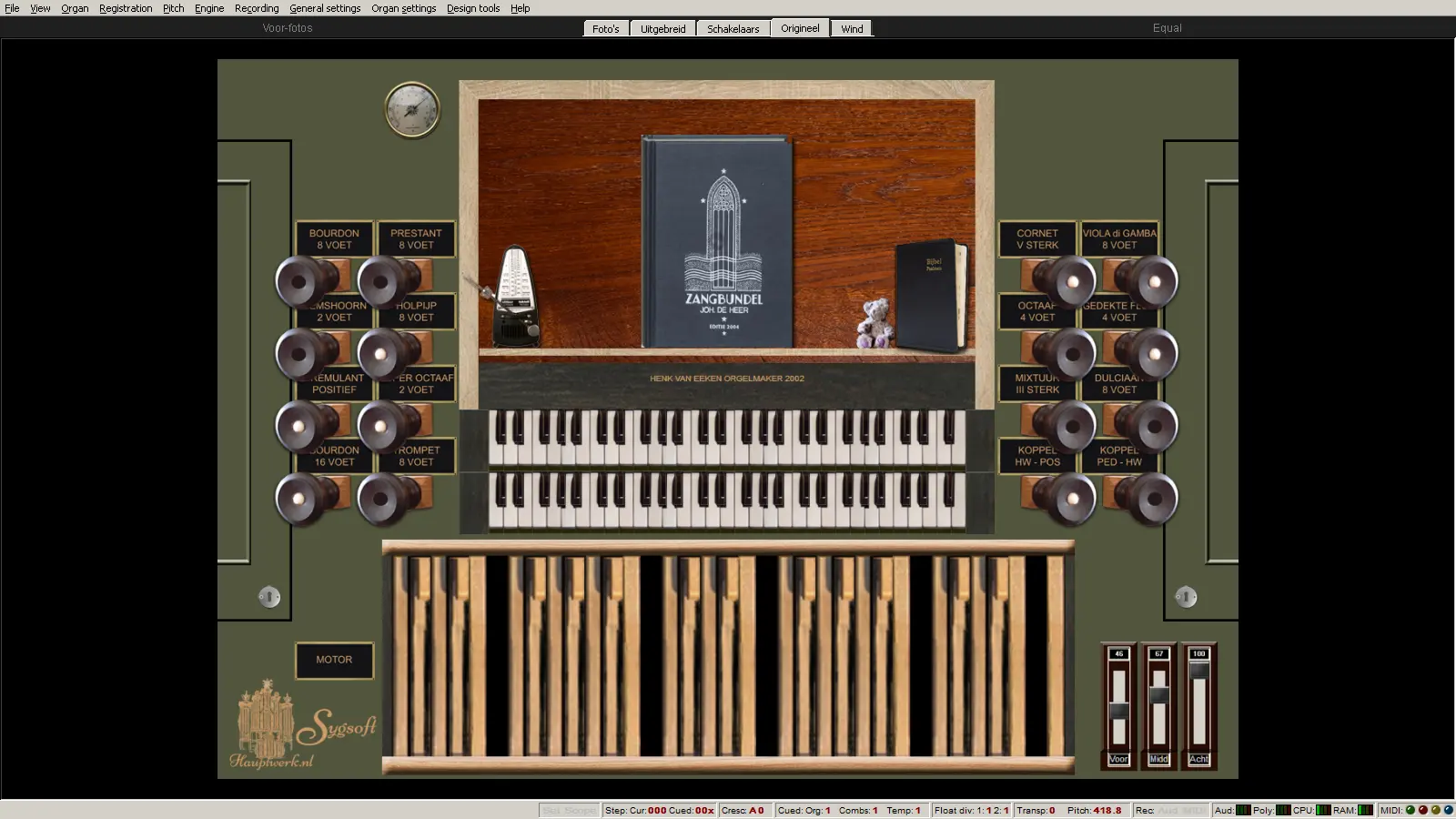

Tab 4 : Origineel (Original)
hoogblokland_08
The original tab

With the help of this tab we wanted to achieve the most accurate possible representation of the original van Eeken organ for the Puritans among us.
What is not originally shown is the range of the keyboards: the highest 2 keys of the manuals and the highest 3 of the pedal are not present on the real organ. The layout of the register pulls is the same as the real organ.
All additional voices, couples and the tremulant of the main work are missing here.
The lowest 7 pipes of Prestant 8' are made of oak (the rest are made of metal) and can also be heard here. If you use the Prestant 8' via the Advanced tab, the lowest 7 pipes are made of metal through artificial means and therefore fit better into the whole.
Because these 2 Prestants may not sound at the same time, the Prestant of this tab disables the Prestant on the Extended tab and vice versa.

If you turn the mouse wheel with the mouse pointer on the sheet music, you can choose from 18 different music books. A vertical movement with a finger also works. This is of no further use.
The engine switch is actually located in a different location. If you decide to only use this organ in the original version, a number of voices may be omitted when loading, these are: 1st: All tremulant voices of the Great Work. 2nd: 02-Prestant8 in its entirety.
3rd: 01-Bourdon16 in its entirety.
4th: 10-Roerfuit4 in its entirety.
5th: 05-Quint3 in its entirety.
6th: 23-VoxCeleste8 in its entirety.
7th: 27-Terts135 (1 3/5') overall.
8th: 42-Gedekt8 in its entirety.
9th: 43-Octaaf4 in its entirety.
10th: 44-Basson16 in its entirety.
This means that the organ will take up considerably less RAM on your computer.

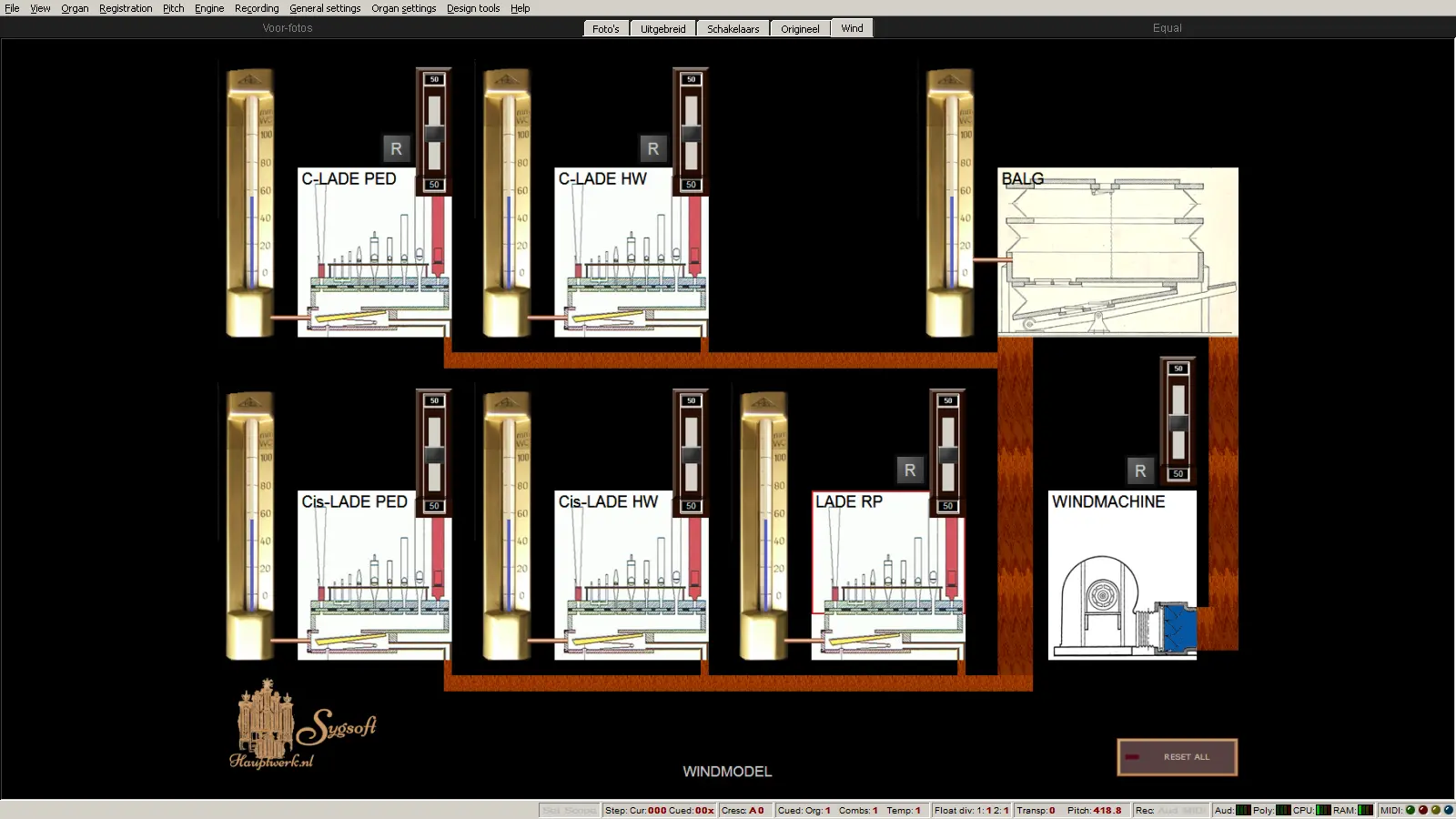

Tab 5 : Wind
hoflaankerk_09
The windmodel

On this tab a schematic representation of the wind supply of this organ.
With the various sliders you can regulate the supply of wind for the bellows and the various wind drawers.
With the "R" or reset buttons you can return to the settings that we think suit you best. With the "Reset All" button at the bottom right you can reset all 7 sliders at once.

Important:
Should you decide not to load parts of this sample set (e.g. your computer RAM memory is too small and you choose to omit all "Middle" samples or you only use the original samples) then the wind consumption is significantly reduced and the organ becomes much less sensitive to wind than it actually is.
In that case, go to Organ settings/Organ prereferences/Wind supply model and choose a value significantly higher than 100%. We cannot provide a guideline for this given the many possibilities. Obviously, you can choose any value if you don't like the organ's behavior. With the check mark on this same Wind supply model tab you can completely disable the wind supply.
